Baileigh AP-3R Manual Ratcheting Arbor Press, 3 US Tons
Item numberAP-3R
462,91 € gross389,00 € netincl. VAT · Shipping costs
Manual arbor press rated at 3 US tons (2.7 metric tonnes), with ratchet leverage, rapid-transfer handwheel and a rigid cast-iron frame. Suitable for controlled pressing, assembly, riveting and broaching work.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

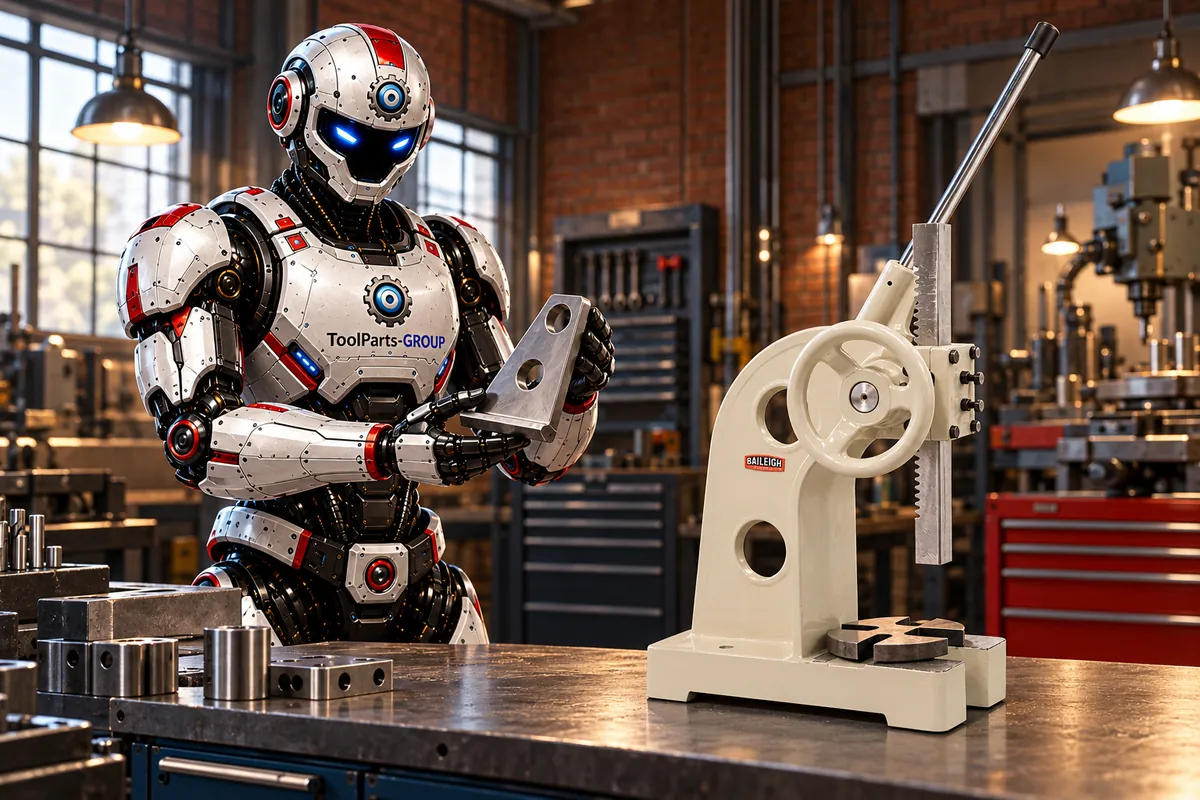

In use
Overview
The Baileigh AP-3R combines a rigid cast-iron frame with precise manual control. Its ratchet lever provides controlled force application, while the handwheel allows rapid ram positioning as well as small, delicate setup movements. A solid case-hardened square ram and a machined four-position die plate support accurate, repeatable work. With a 127 mm throat depth (5 in.) and a maximum material height of 279 mm (11 in.), the press is suited to fitting and removing components, riveting, assembly and broaching in fabrication and machine shops.
- Manual operation with no electrical or compressed-air supply required
- Ratchet lever for controlled force application
- Handwheel for rapid ram movement and fine positioning
- Rigid cast-iron frame
- Solid case-hardened square ram
- Machined four-position bottom die plate
- Adjustable ram slideway for tension and clearance
Benefits
- Manual operation with no electrical or compressed-air supply required
- Ratchet lever for controlled force application
- Handwheel for rapid ram movement and fine positioning
- Rigid cast-iron frame
- Solid case-hardened square ram
- Machined four-position bottom die plate
- Adjustable ram slideway for tension and clearance
Technical data
Machining data
- Capacity
- 3.0 US tons (2.7 metric tonnes)
- Ram size
- 1.5 in. (38 mm)
- Throat depth
- 5 in. (127 mm)
- Maximum material height
- 11 in. (279 mm)
- Ram travel per revolution
- 6 in. (152 mm)
- Power
- manual
- Shipping dimensions (L × W × H)
- 18 × 9 × 25 in. (457 × 229 × 635 mm)
- Shipping weight
- 60 kg (132 lb)
Downloads
Operating manuals and spare-parts listsProduct safety
Crushing, shearing, cutting, punching and entanglement hazards at tooling, rolls and moving machine parts. Handle sharp and heavy workpieces safely. Trained operators only; never exceed rated capacities.
Secure the machine and use it only within the material and capacity limits stated in the manual. Guide or support the workpiece safely. Keep hands clear of bending, pressing, cutting, punching and pinch zones and use suitable handling aids. Wear eye protection, safety footwear and cut-resistant gloves when handling material. Stop the machine and isolate all energy sources before adjustment, tooling changes, cleaning or maintenance.
