Baileigh AP-5 Manual Arbor Press, 5.6 US Tons
Item numberAP-5
891,31 € gross749,00 € netincl. VAT · Shipping costs
The Baileigh AP-5 is a hand-operated arbor press with 5 t capacity, 226 mm throat depth and up to 400 mm material height for bench mounting.
Available for pre-orderExpected availability from 30/11/2026. Transit time is additional.
Delivery / availability: Available for pre-order · Expected availability from 30/11/2026. Transit time is additional. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Customer groupPurchase: businesses and private customers

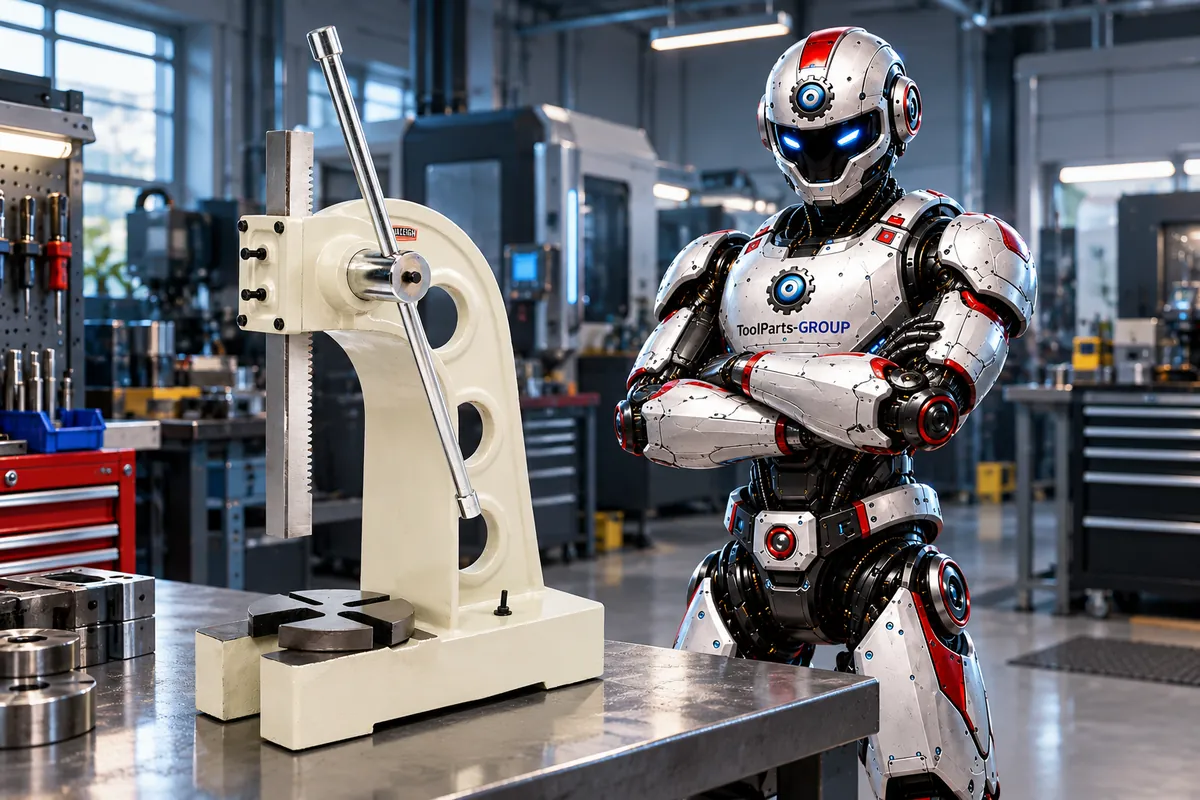

In use
Overview
The Baileigh AP-5 is an arbor press for workshops, maintenance and training. It is used to press bearings, bushings and pins in and out and for straightening and assembly work. The press has no motor: the ram is raised and lowered by the handle and a gear.
The maximum capacity is 5 t. The ram measures 50 × 50 mm, the throat depth is 226 mm and the maximum material height is 400 mm. The ram travels 216 mm per revolution.
The ram guide is set at the factory and can be adapted to the application with a bolt and nut. The press is designed for mounting on a suitably reinforced workbench. Shipping weight is 166 kg.
Supplied with the operating manual.
Features at a glance
- Capacity 5 t
- Ram 50 × 50 mm
- Throat depth 226 mm
- Material height up to 400 mm
- Adjustable ram guide
- Manual operation, no motor
Benefits
- Manual operation with no electrical or compressed-air supply
- Rigid machined cast-iron frame
- Solid case-hardened square ram
- Long adjustable leverage handle
- Four-position bottom die plate
- Removable bottom plate for pressing directly on the frame
- Suitable for mounting on a reinforced bench or load-rated pedestal
Technical data
Machining data
- Max. capacity
- 5 t
- Max. arbor height
- 70 mm
- Ram size
- 50 × 50 mm
- Throat depth
- 226 mm
- Max. material height
- 400 mm
- Ram travel per revolution
- 216 mm
Additional data
- Drive
- manual
Dimensions
- Shipping dimensions (L × W × H)
- 762 × 381 × 953 mm
Weight
- Shipping weight
- 166 kg
Delivery & scope of delivery
Scope of delivery
- Baileigh AP-5 arbor press
- Operating manual
Downloads
Operating manuals and spare-parts listsProduct safety
Crushing, shearing, cutting, punching and entanglement hazards at tooling, rolls and moving machine parts. Handle sharp and heavy workpieces safely. Trained operators only; never exceed rated capacities.
Secure the machine and use it only within the material and capacity limits stated in the manual. Guide or support the workpiece safely. Keep hands clear of bending, pressing, cutting, punching and pinch zones and use suitable handling aids. Wear eye protection, safety footwear and cut-resistant gloves when handling material. Stop the machine and isolate all energy sources before adjustment, tooling changes, cleaning or maintenance.
