Baileigh TN-210H tube notcher
Item numberTN-210H
392,00 € gross329,41 € netincl. VAT · Shipping costs
The Baileigh TN-210H is a hole saw tube and pipe notcher for use with a drill press or hand drill, for tube up to 50.8 mm OD and angles from 0 – 50°.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

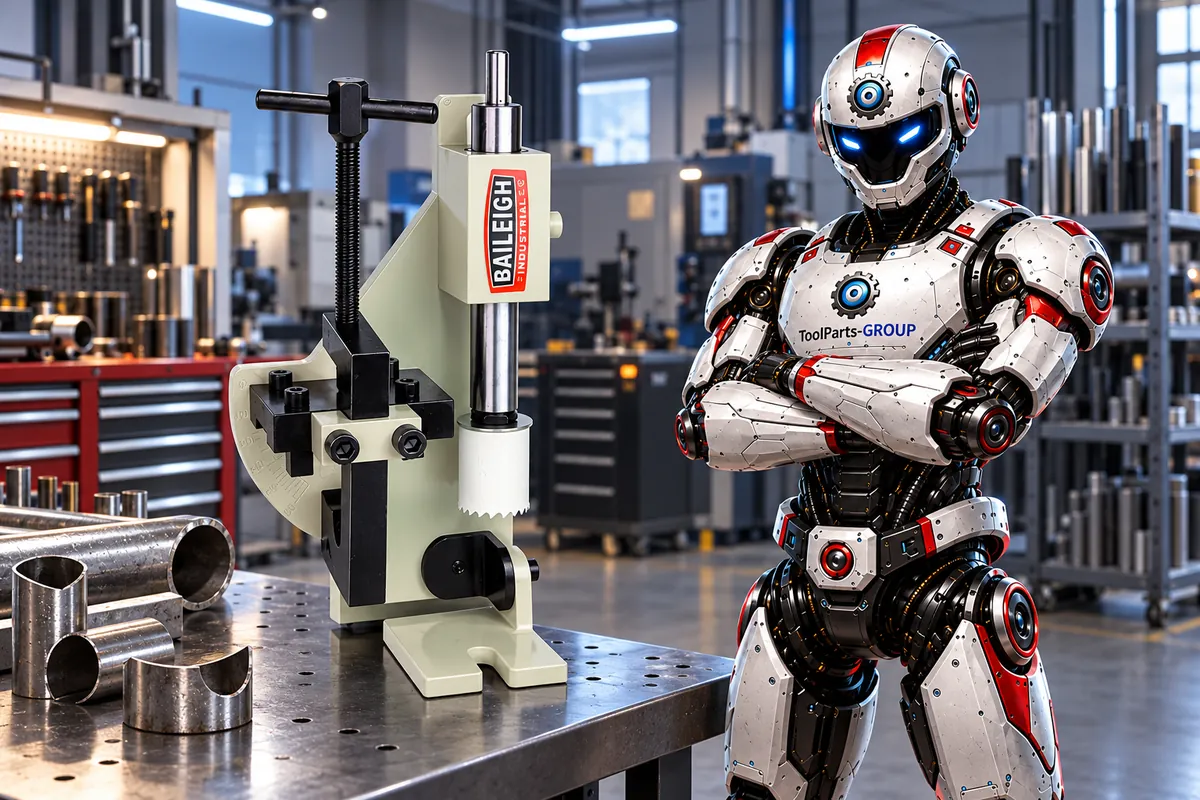

In use
Overview
The Baileigh TN-210H is a hole saw tube and pipe notcher for producing accurate fit-ups on tube and pipe before welding. It handles tube and pipe up to 50.8 mm OD, and the notching angle can be set from 0 – 50°. It is driven by a drill press or hand drill at approx. 500 rpm.
The 25.4 mm spindle runs in two needle bearings. Hole saws with a 1/2 in thread screw directly onto the spindle, and an adapter and spacer for 5/8 in hole saws are included. The tube is held under the inverted V with the tube clamp and T-handle.
The notcher is fixed to the drill press table with its mounting plate or clamped horizontally on the workbench. A base with swivel is included for vertical operation. Shipping weight is 5 kg.
Features at a glance
- Tube and pipe up to 50.8 mm OD
- Notching angle 0 – 50°
- 25.4 mm spindle in needle bearings
- 1/2 in hole saw arbor, 5/8 in adapter included
- Driven by drill press or hand drill
Technical data
Machining data
- Max. notching capacity OD
- 50.8 mm
- Angle adjustment
- 0 – 50°
- Spindle diameter
- 25.4 mm
- Hole saw arbor
- 1/2 in thread / 5/8 in with adapter
- Recommended speed
- approx. 500 rpm
Additional data
- Drive
- drill press or hand drill
Dimensions
- Shipping dimensions (L × W × H)
- 305 × 178 × 127 mm
Weight
- Shipping weight
- 5 kg
Delivery & scope of delivery
Scope of delivery
- Baileigh TN-210H hole saw tube and pipe notcher (bearing block and V-bracket pre-assembled)
- 1 × tube clamp with clamp bracket
- 1 × T-handle
- 1 × base with swivel for vertical operation
- 1 × hole saw adapter 5/8 in
- 1 × spacer
- Mounting bolts with washers
- Operating manual
Downloads
Operating manuals and spare-parts listsProduct safety
Crushing, shearing, cutting, punching and entanglement hazards at tooling, rolls and moving machine parts. Handle sharp and heavy workpieces safely. Trained operators only; never exceed rated capacities.
Secure the machine and use it only within the material and capacity limits stated in the manual. Guide or support the workpiece safely. Keep hands clear of bending, pressing, cutting, punching and pinch zones and use suitable handling aids. Wear eye protection, safety footwear and cut-resistant gloves when handling material. Stop the machine and isolate all energy sources before adjustment, tooling changes, cleaning or maintenance.
