Baileigh TN-250 tube notcher
Item numberTN-250
1.724,31 € gross1.449,00 € netincl. VAT · Shipping costs
The Baileigh TN-250 is a hole saw tube and pipe notcher driven by a hand drill, for tube from 12.7 – 63.5 mm OD and notches over 75°.
AvailableAvailable ex works
Delivery / availability: Approx. 7 days The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

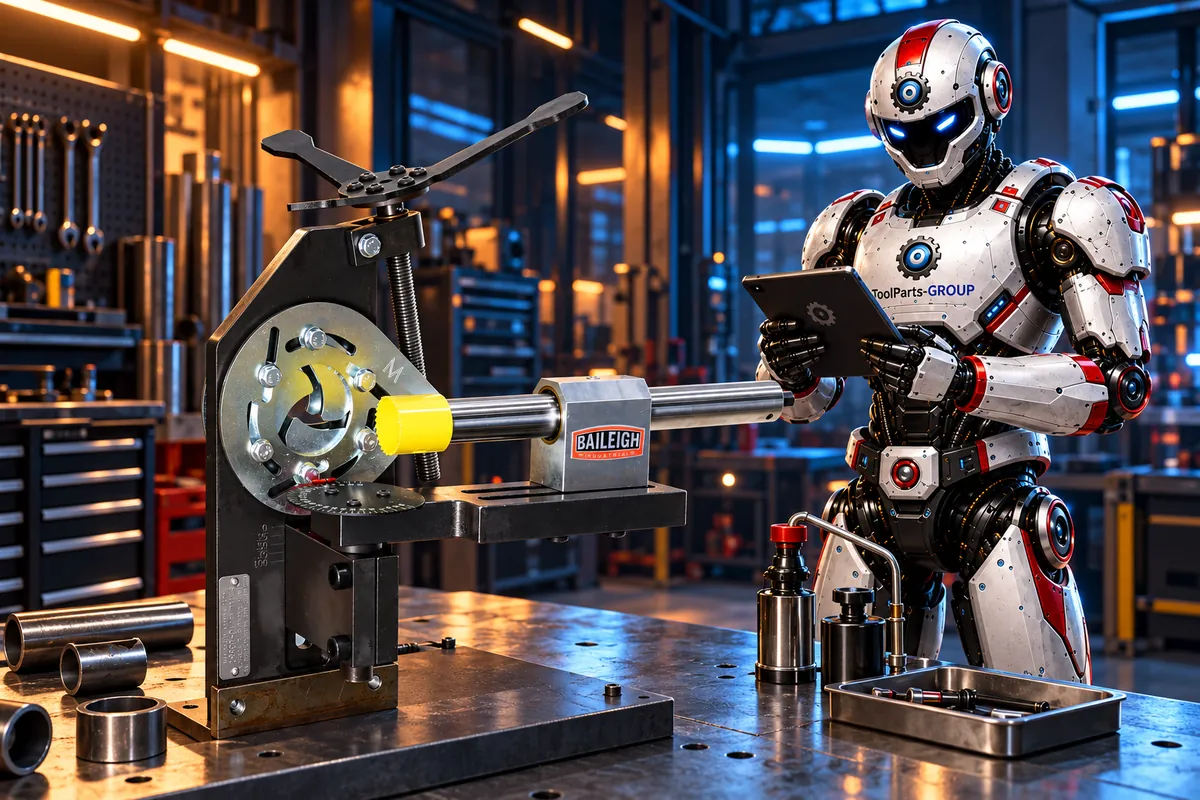

In use
Overview
The Baileigh TN-250 is a hole saw tube and pipe notcher for producing accurate fit-ups on tube in metal fabrication, frame and railing construction before welding. It handles tube from 12.7 – 63.5 mm OD. The angle is infinitely adjustable and notches over 75° are possible.
The machine is of solid steel construction with Grade 8 bolts throughout. A 6-jaw radial vise operated by a three-spoke hand wheel holds the tube securely. The hardened 31.75 mm drive shaft has replaceable tips, and a slotted carriage allows offset notches without shims.
The TN-250 is driven by a hand drill with a 13 mm chuck at approx. 250 rpm. It is clamped in a bench vise or bolted to the side of a workbench. Supplied with hand wheel, pivot block with angle indicator, retaining plate and operating manual.
Features at a glance
- Tube 12.7 – 63.5 mm OD
- Infinite angle adjustment, over 75°
- 6-jaw radial vise
- Hardened 31.75 mm shaft with replaceable tips
- Slotted carriage for offset notches
- Driven by hand drill with 13 mm chuck
Technical data
Machining data
- Notching capacity OD
- 12.7 – 63.5 mm
- Angle adjustment
- infinite, notches over 75°
- Drive shaft
- hardened shaft Ø 31.75 mm with replaceable tips
- Vise
- 6-jaw radial vise
- Recommended speed
- approx. 250 rpm
Additional data
- Drive
- hand drill with 13 mm chuck
Dimensions
- Shipping dimensions (L × W × H)
- 610 × 305 × 305 mm
Weight
- Shipping weight
- 23 kg
Delivery & scope of delivery
Scope of delivery
- Baileigh TN-250 hole saw tube and pipe notcher
- 1 × three-spoke hand wheel with socket head screws
- 1 × pivot block with angle indicator
- 1 × retaining plate with bolts
- Operating manual
Downloads
Operating manuals and spare-parts listsProduct safety
Crushing, shearing, cutting, punching and entanglement hazards at tooling, rolls and moving machine parts. Handle sharp and heavy workpieces safely. Trained operators only; never exceed rated capacities.
Secure the machine and use it only within the material and capacity limits stated in the manual. Guide or support the workpiece safely. Keep hands clear of bending, pressing, cutting, punching and pinch zones and use suitable handling aids. Wear eye protection, safety footwear and cut-resistant gloves when handling material. Stop the machine and isolate all energy sources before adjustment, tooling changes, cleaning or maintenance.
