Baileigh VM-1054-3 vertical milling machine
Item numberVM-1054-3
35.817,81 € gross30.099,00 € netincl. VAT · Shipping costs
The Baileigh VM-1054-3 is a vertical knee mill with NT 40 spindle, 2.2 kW motor, 80 – 3800 rpm, 1372 × 254 mm table and power feed on X, Y and Z.
Currently out of stock – enquireStock on request
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceStock on request
Customer groupPurchase: businesses and private customers

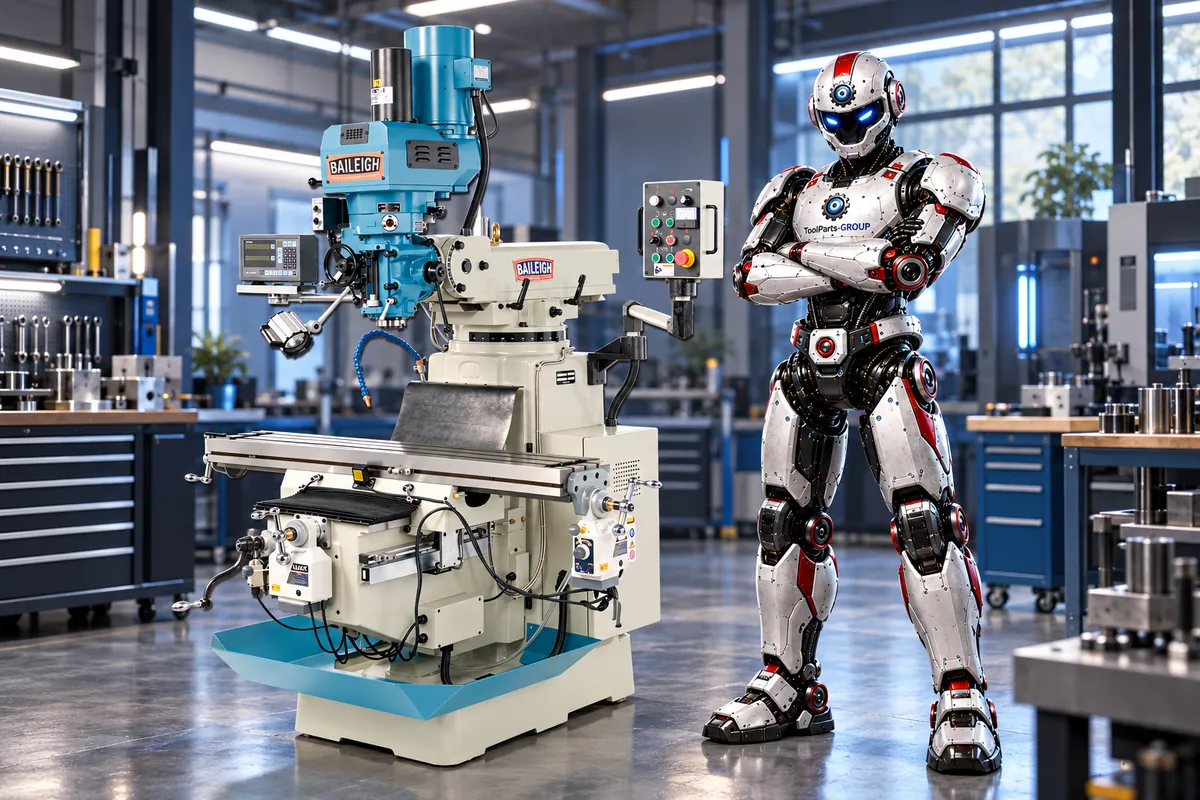

In use
Overview
The Baileigh VM-1054-3 is a knee-type milling machine for milling and drilling in tool and die making, job shops, maintenance and training. The 2.2 kW (3 HP) spindle motor drives the NT 40 spindle in a range of 80 to 3800 rpm. A pneumatic power drawbar makes tool changes easier.
The milling head tilts 45° in two planes, quill travel is 127 mm with quill feeds of 0.04 / 0.08 / 0.13 mm per revolution. The table measures 1372 × 254 mm (16 mm T-slots) and carries up to 250 kg. Travels are 900 mm in X, 400 mm in Y and 406 mm in Z, all three axes have power feed. A digital readout displays the X and Y axis positions.
The integrated coolant system (0.1 kW pump, 28 – 30 l) supplies the tool, a chip and drip tray returns the coolant. Front and rear way covers, a tool box with basic tools and the operating manual are supplied. Shipping weight is 1364 kg.
Features at a glance
- NT 40 spindle, 80 – 3800 rpm, 2.2 kW motor
- Head tilts 45° in two planes
- Power feed on X, Y and Z axes
- Pneumatic power drawbar
- Table 1372 × 254 mm, up to 250 kg
- Integrated coolant system
Technical data
Electrical data
- Power supply
- 400 V / 50 Hz / 3 phases
- Output power spindle motor
- 2.2 kW (3 HP)
- Output power coolant pump
- 0.1 kW (1/8 HP)
Machining data
- Spindle taper
- NT 40
- Spindle speed
- 80 – 3800 rpm
- Spindle feed per revolution
- 0.04 / 0.08 / 0.13 mm
- Spindle travel
- 127 mm
- Head swivel
- 45° front / rear and left / right
- Spindle nose to table
- 40 – 445 mm
- Spindle center to column
- 200 – 680 mm
- Ram travel
- 480 mm
- X travel manual / power
- 900 / 820 mm
- Y travel manual / power
- 400 / 400 mm
- Z travel manual / power
- 406 / 406 mm
Table
- Table size (L × W)
- 1372 × 254 mm
- Table load
- max. 250 kg
- T-slot size
- 16 mm
Additional data
- Coolant capacity
- 28 – 30 l
Dimensions
- Shipping dimensions (L × W × H)
- 1524 × 1524 × 2210 mm
Weight
- Shipping weight
- 1364 kg
Delivery & scope of delivery
Scope of delivery
- Baileigh VM-1054-3 vertical knee mill
- 1 × flat way cover (rear)
- 1 × accordion way cover (front)
- 1 × tool box with hex wrench set 1.5 – 10 mm, 19 mm combination wrench, #2 Phillips screwdriver, #2 flat blade screwdriver
- 1 × plastic oil cap
- Operating manual
Downloads
Operating manuals and spare-parts listsProduct safety
Rotating or cutting parts: entanglement, cutting, impact and workpiece-ejection hazards. Observe chips, sparks, dust and noise. Trained operators only; never exceed rated capacities.
Install the machine securely and operate it in accordance with the manual. Clamp the workpiece and tool correctly, use all guards and check the work area before starting. Wear eye or face protection, hearing protection and respiratory protection where required. Keep loose clothing, jewellery and long hair away from rotating parts. Switch off, isolate all energy sources and wait for a complete stop before setup, cleaning, fault removal or tool changes.
