JET 719AS-M Mortising machine
Item number719AS-M
EAN / GTIN7612375528015
1.783,81 € gross1.499,00 € netincl. VAT · Shipping costs
The JET 719AS-M is a mortiser with tilting table for cutting mortises in wood. 230 V motor with 0.75 kW, hollow chisels up to 25 × 25 mm, stroke 200 mm.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

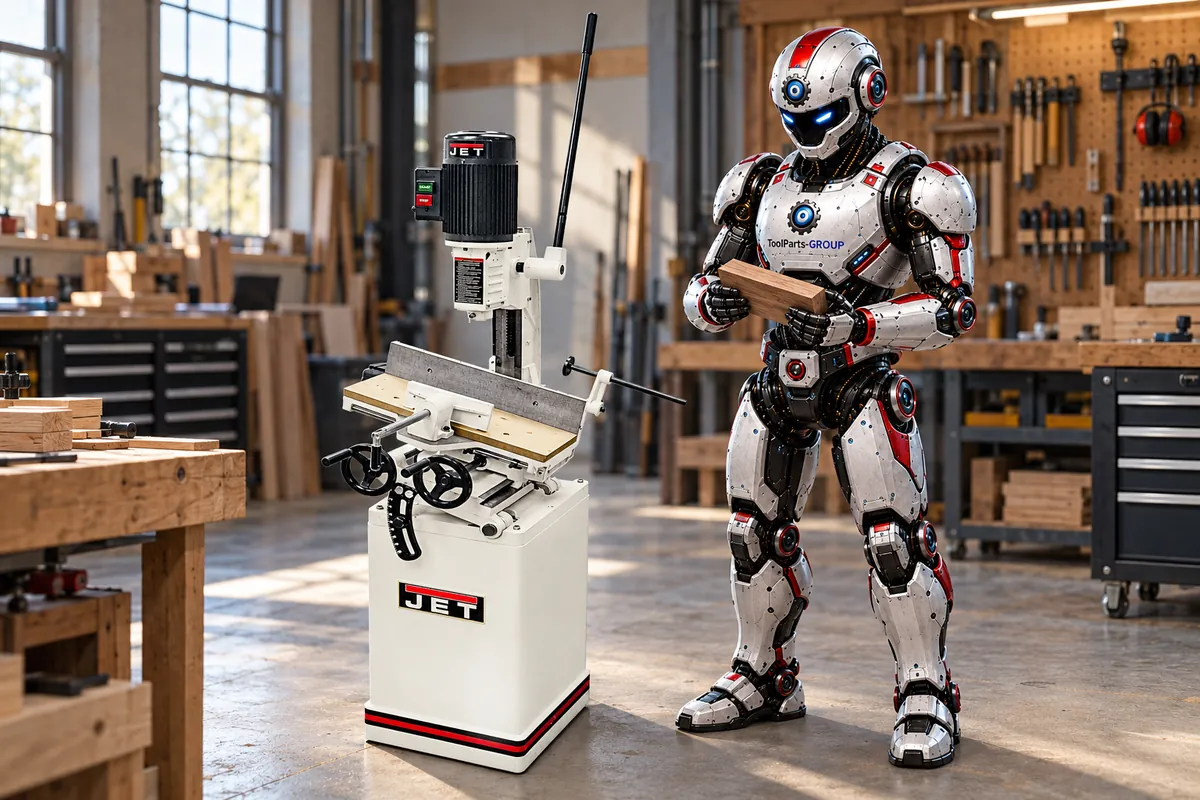

In use
Overview
The JET 719AS-M is a mortiser with tilting table for joinery shops, window and stair making and schools. It is intended for mortising wood and wood substitutes and uses a hollow chisel and bit to cut square mortises for frame, furniture and chair joints.
The 230 V motor with 0.75 kW runs at 1450 rpm. Hollow chisels up to 25 × 25 mm are fitted via adapter bushings for shank sizes 5/8 / 3/4 / 13/16 / 1-3/16 inch, and the stroke is 200 mm. The head runs in a dovetail guide and is adjusted by rack, with a gas strut balancing its weight. The head rotates by 180°, for example for boring door lock pockets. The machine stands on an enclosed base cabinet with storage shelf.
The 180 × 520 mm compound table travels 400 / 100 mm longitudinally / crosswise via large handwheels and tilts 0° – 35°. End stops and a quick-action clamp support series work. Supplied with 13 mm geared chuck, spindle extension, four adapter bushings, MDF table surface, length stop and depth stop. Hollow chisels are not included.
Features at a glance
- 230 V motor, 0.75 kW
- Chisels up to 25 × 25 mm, stroke 200 mm
- Compound table 180 × 520 mm, travel 400 / 100 mm
- Table tilts 0° – 35°
- Head rotates by 180°
- Base cabinet with storage shelf
Benefits
- Powerful motor for demanding applications
- Large handwheels for easy and precise adjustment of the coordinate table
- End stops for repeatable series production
- Workpiece clamp with quick adjustment for fast and safe work
- Table tilt up to 35° (model 719AS-M) for maximum flexibility
- Stable base cabinet with storage compartment - order and safety in your workshop
Technical data
| Electrical | |
|---|---|
| Voltage | 1~230 V, PE, 50 Hz |
| Phases | 1 |
| Motor output S1 | 0.75 kW (1 PS) |
| Operating current | 5.5 A |
| Power cord | H07RN-F 3 × 1.5 mm² |
| Installation fuse | 10 A |
| Protection class | I |
| Capacities | |
| Motor speed | 1450 rpm |
| Drill chuck capacity | 13 mm |
| Max. chisel size | 25 × 25 mm |
| Chisel bushings | 5/8 / 3/4 / 13/16 / 1-3/16 inch |
| Head stroke | 200 mm |
| Max. distance table to chisel bushing | 295 mm |
| Max. chisel centre to fence | 100 mm |
| Table | |
| Fence size | 90 × 520 mm |
| Table size | 180 × 520 mm |
| Table travel long / cross | 400 / 100 mm |
| Table tilt | 0° – 35° |
| Dimensions | |
| Dimensions (L × W × H) | 650 × 500 × 1760 mm |
| Weight | |
| Net weight | 116 kg |
| Shipping weight | 141 kg |
| Further data | |
| Sound pressure level | LpA 67.8 dB(A) idling / 77.5 dB(A) in operation |
Target audience
Professional users, workshops and demanding trade businesses.
Application
For typical mortising machine applications in workshops and production.
Scope of delivery
- JET 719AS-M mortiser with tilting table
- Closed cabinet stand with storage shelf
- Drill chuck 13 mm
- Chuck key
- Spindle extension
- Chisel bushing 5/8 inch (15.87 mm)
- Chisel bushing 3/4 inch (19.05 mm)
- Chisel bushing 13/16 inch (20.64 mm)
- Chisel bushing 1-3/16 inch (30.16 mm)
- 2 × hand wheel handles
- MDF table
- Operating handle
- Work stop
- Depth stop and end stops
- Operating tools
- Assembly kit
- Operating manual
- Spare parts list
Product safety
- Manufacturer: JPW Industries, Inc.
- Website: https://www.jettools.com/
- Distributor / service contact: Christian Satter / ToolParts-Service
- Address: Kleinhaslach 35, 90599 Dietenhofen, Deutschland
- Website: https://toolparts-group.com/
Product identifiers
- Article number: 719AS-M
- MPN: 719AS-M
- EAN/GTIN: 7612375528015
