JET JBM-5-M Mortising machine
Item numberJBM-5-M
EAN / GTIN7612375528084
522,41 € gross439,00 € netincl. VAT · Shipping costs
The JET JBM-5-M is a benchtop mortiser for cutting mortises in wood. 230 V motor with 0.37 kW, hollow chisels up to 12.7 × 12.7 mm, stroke 120 mm.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

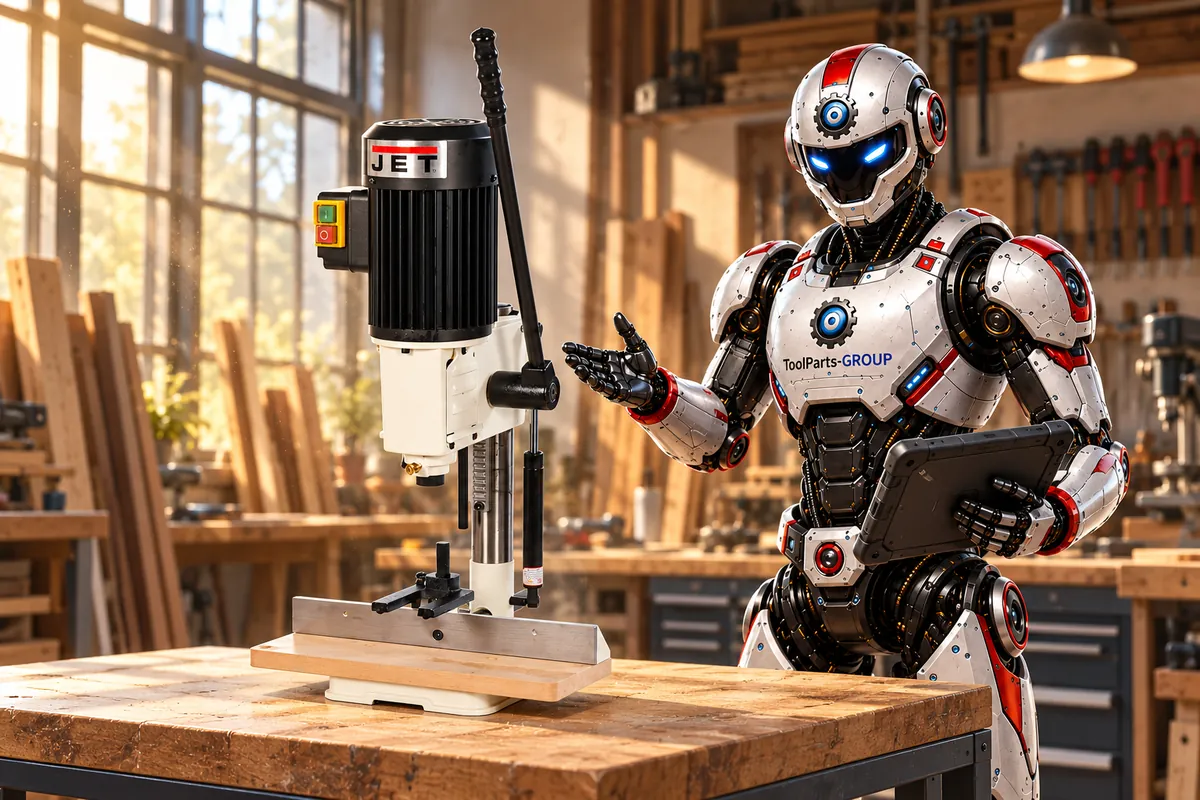

In use
Overview
The JET JBM-5-M is a benchtop mortiser for workshops, construction sites, trades and schools. It is intended for mortising wood and wood substitutes and uses a hollow chisel and bit to cut square mortises for frame, furniture and chair joints.
The 230 V motor with 0.37 kW runs at 1450 rpm. Hollow chisels up to 12.7 × 12.7 mm are fitted via adapter bushings for shank sizes 5/8 / 3/4 / 13/16 inch, and the stroke is 120 mm. The head is height-adjusted by rack, and a gas strut balances its weight. The operating lever can be repositioned. The sturdy cast iron construction weighs 20 kg and is compact enough for mobile use.
The 345 × 150 mm table has a replaceable MDF surface, and fence, hold-down and depth stop are adjustable. Supplied with 10 mm geared chuck, spindle extension, three adapter bushings, fence, hold-down and MDF table surface. Hollow chisels are not included.
Features at a glance
- 230 V motor, 0.37 kW
- Chisels up to 12.7 × 12.7 mm, stroke 120 mm
- Rack height adjustment with gas strut
- Repositionable operating lever
- Fence, hold-down and depth stop
- Compact, 20 kg
Benefits
- Easy operation - rack-and-pinion height adjustment with gas strut counterbalance cylinder
- Flexible handling - repositionable drilling lever for individual adjustment
- Perfect results - adjustable fence and workpiece hold-down for maximum precision
- Practical and durable - MDF table pad, easy to replace
Technical data
| Electrical | |
|---|---|
| Voltage | 230 V ~1/N/PE, 50 Hz |
| Phases | 1 |
| Motor output S1 | 0.37 kW (0.5 PS) |
| Operating current | 3 A |
| Power cord | H07RN-F 3 × 1.5 mm² |
| Installation fuse | 10 A |
| Capacities | |
| Motor speed | 1450 rpm |
| Drill chuck capacity | 10 mm |
| Max. chisel size | 12.7 × 12.7 mm |
| Chisel shank capacity | 5/8 / 3/4 / 13/16 inch |
| Head stroke | 120 mm |
| Max. chisel centre to fence | 90 mm |
| Under hold-down capacity | 100 mm |
| Max. distance table to chisel bushing | 208 mm |
| Table | |
| Fence size | 40 × 320 mm |
| Table size | 345 × 150 mm |
| Dimensions | |
| Dimensions (L × W × H) | 370 × 350 × 750 mm |
| Weight | |
| Net weight | 20 kg |
| Shipping weight | 45 kg |
| Further data | |
| Sound pressure level | 67.4 dB(A) idling / 75.5 dB(A) in operation |
Target audience
Professional users, workshops and demanding trade businesses.
Application
For typical mortising machine applications in workshops and production.
Scope of delivery
- JET JBM-5-M mortiser
- Drill chuck 10 mm
- Chuck key (extended)
- Spindle extension
- Chisel bushing 5/8 inch (15.87 mm)
- Chisel bushing 3/4 inch (19.05 mm)
- Chisel bushing 13/16 inch (20.64 mm)
- Fence assembly
- Work hold-down
- MDF table
- Handle
- Gas spring
- Operating manual
- Spare parts list
Product safety
- Manufacturer: JPW Industries, Inc.
- Website: https://www.jettools.com/
- Distributor / service contact: Christian Satter / ToolParts-Service
- Address: Kleinhaslach 35, 90599 Dietenhofen, Deutschland
- Website: https://toolparts-group.com/
Product identifiers
- Article number: JBM-5-M
- MPN: JBM-5-M
- EAN/GTIN: 7612375528084
Technical data
Additional data
- Marke
- JET
- Product type
- Machine
- Baureihe
- JBM-5
- Modell/Typ
- Stemmmaschine
- Original/Kompatibel
- Originalprodukt
