JET JPT-310HH-M Jointer-planer
Item numberJPT-310HH-M
EAN / GTIN7612375754094
Watch video2.945,25 € gross2.475,00 € netincl. VAT · Shipping costs
The JET JPT-310HH-M is a jointer planer for wood and wood-based materials. 230 V single-phase motor with 2.2 kW, planing width 307 mm and thicknessing capacity 4 – 225 mm.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

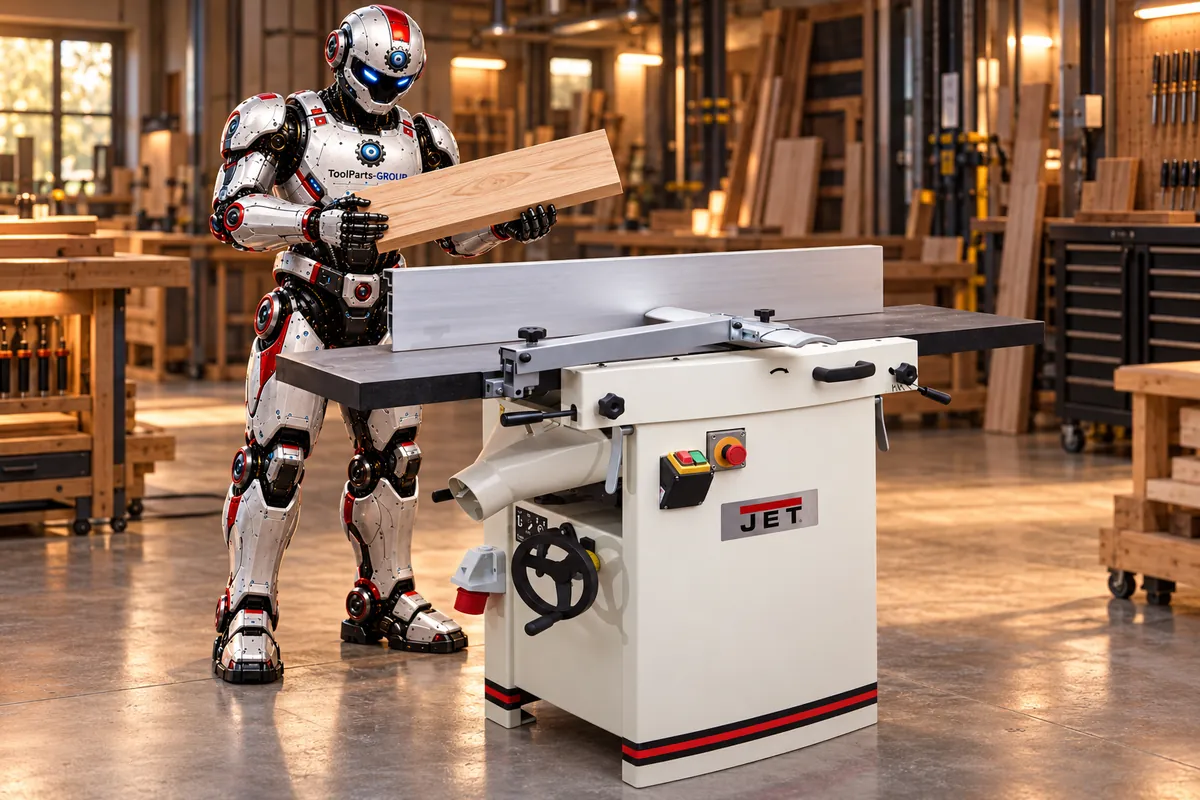

In use
Overview
The JET JPT-310HH-M is a combined jointer and thickness planer for joinery shops, workshops, trades and schools. It is intended for planing wood and wood-based materials, and metallic materials must not be machined. On one machine, workpieces are surface planed, edge jointed and then planed to thickness.
The 230 V single-phase motor with 2.2 kW drives the cutterblock via belt. The spiral cutterblock with a diameter of 72 mm is fitted with 56 carbide inserts (4 edges) and runs at 5500 rpm. The shearing cut produces clean surfaces even with difficult grain. Dull edges are replaced by turning the insert by 90°. Jointing and thicknessing are possible up to 307 mm width, and the thicknessing capacity is 4 – 225 mm. The maximum depth of cut is 3 mm for jointing and 4.5 mm for thicknessing, and the feed runs at 3.5 m/min and can be switched off.
The cast iron jointer tables have a total length of 1400 mm and open to both sides for changing to thicknessing without removing the fence. The aluminium fence (1100 × 150 mm) tilts from 0° – 45°. Supplied with five spare inserts, jointing fence, adjustable cutterblock guard, dust port, push block and setting gauge.
Features at a glance
- 230 V single-phase motor, 2.2 kW
- Planing width 307 mm, thicknessing capacity 4 – 225 mm
- Spiral cutterblock with 56 carbide inserts (4 edges)
- Cast iron jointer tables, length 1400 mm
- Tables open to both sides, fence stays mounted
- Dust extraction Ø 100 mm
Benefits
- Flawless results - tear-out-free, smooth surfaces even with demanding grain, thanks to
- Durable and economical - fine-grain carbide indexable inserts are extremely resistant
- Whisper-quiet operation - significantly reduced noise for more pleasant work.
- An investment that pays off - maximum precision, durability and efficiency for your workshop.
Technical data
| Electrical | |
|---|---|
| Voltage | 230 V ~1/N/PE, 50 Hz |
| Phases | 1 |
| Motor output S1 | 2.2 kW (3 PS) |
| Operating current | 12.5 A |
| Power cord | H07RN-F 3 × 1.5 mm² |
| Installation fuse | 16 A |
| Capacities | |
| Jointing width | max. 307 mm |
| Max. depth of cut (jointing) | 3 mm |
| Thicknessing width | max. 307 mm |
| Thicknessing height | 4 – 225 mm |
| Max. depth of cut (thicknessing) | 4.5 mm |
| Min. workpiece length | 150 mm |
| Feed speed | 3.5 m/min |
| Cutterblock diameter | 72 mm |
| Cutterblock speed | 5500 rpm |
| Spiral cutterblock | 56 carbide inserts (4 edges) |
| Table | |
| Jointer table length | 1400 mm |
| Table height above floor | 850 mm |
| Thicknessing table length | 540 mm |
| Fence size | 1100 × 150 mm |
| Fence tilt | 0° – 45° |
| Dust extraction | |
| Dust port | Ø 100 mm |
| Minimum air volume | 565 m³/h (at 20 m/s, 900 Pa) |
| Dimensions | |
| Dimensions (L × W × H) | 1400 × 750 × 1000 mm |
| Weight | |
| Net weight | 230 kg |
| Shipping weight | 255 kg |
| Further data | |
| Sound pressure level | LpA planing 72.1 / 85.9 dB(A), thicknessing 69.2 / 85.7 dB(A) (idling / operating) |
| Sound power level | LwA planing 81.7 / 94.3 dB(A), thicknessing 80.7 / 87.8 dB(A) (idling / operating) |
Target audience
Professional users, workshops and demanding trade businesses.
Application
For typical jointer-planer applications in workshops and production.
Scope of delivery
- JET JPT-310HH-M planer thicknesser with spiral cutterblock
- 5 × spare carbide inserts
- Precision jointer fence
- Adjustable cutterblock guard
- Dust port
- Push block
- Knife setting gauge
Product safety
- Manufacturer: JPW Industries, Inc.
- Website: https://www.jettools.com/
- Distributor / service contact: Christian Satter / ToolParts-Service
- Address: Kleinhaslach 35, 90599 Dietenhofen, Deutschland
- Website: https://toolparts-group.com/
Product identifiers
- Article number: JPT-310HH-M
- MPN: JPT-310HH-M
- EAN/GTIN: 7612375754094
