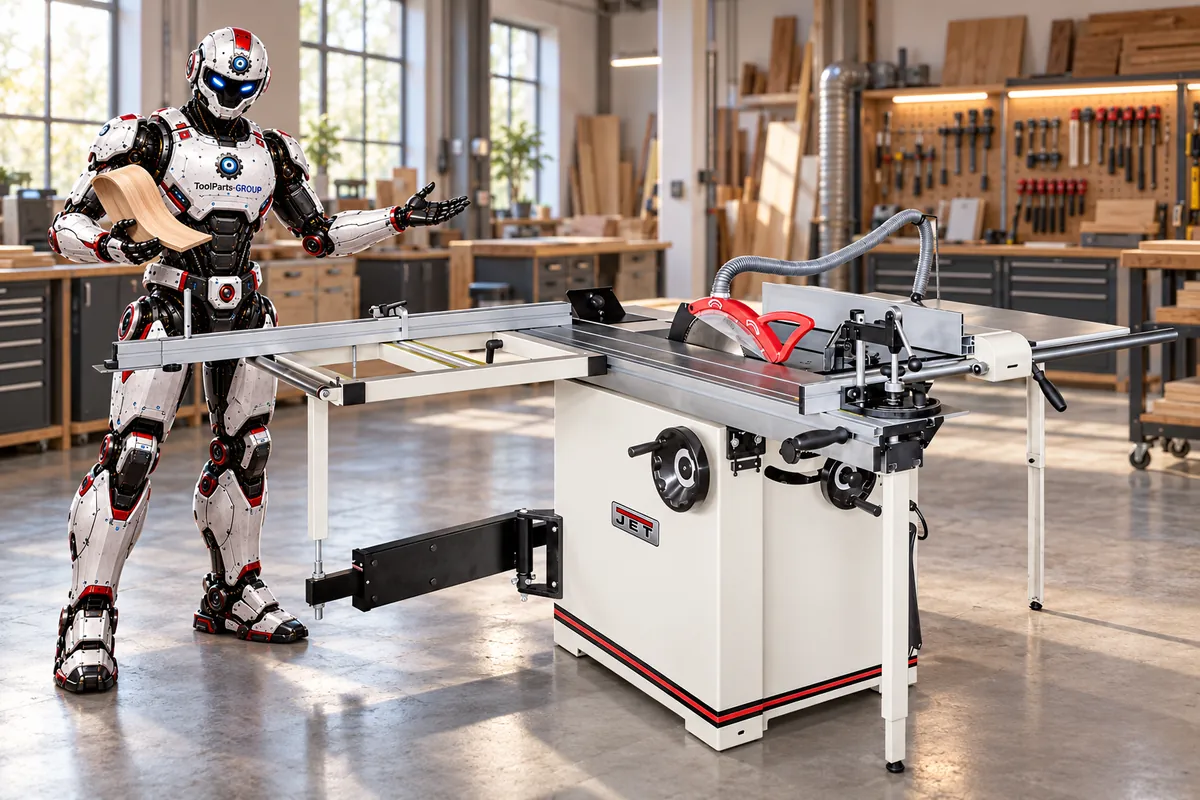

JET JTSS-1600-T Panel saw

The JET JTSS-1600-T is a panel saw for joinery shops, interior fitting and workshops. It is intended for sawing wood, wood-based materials and laminated panels, and metal must not be cut. Work is always carried out using the rip fence, crosscut fence or sliding table.

The 400 V three-phase motor with 3.0 kW drives the main saw blade (Ø 250 – 315 mm) at 4700 rpm. The scoring blade (Ø 90 / 20 mm) is driven by the main motor at 8700 rpm and prevents chipping on the underside of laminated panels. The cutting height is 100 / 80 mm at 90° / 45°, and the saw unit adjusts in height and tilt.

The sliding table (1600 × 270 mm) has a travel of 1600 mm, and ripping widths up to 1220 mm are possible at the rip fence. The cast iron machine table measures 800 × 385 mm. Supplied with crosscut carriage 680 × 580 mm with extendable crosscut fence, table extensions, rip fence, mitre gauge, blade guard, main and scoring blades and tools.

Features at a glance

• 400 V three-phase motor, 3.0 kW
• Scoring blade driven by the main motor
• Sliding table 1600 × 270 mm, travel 1600 mm
• Cutting height 100 / 80 mm at 90° / 45°
• Ripping width at the fence 1220 mm
• Crosscut carriage 680 × 580 mm with fence

Benefits

• Powerful sliding table: The robust carriage with a 1,600 mm travel guarantees exact and smooth cuts.
• Accessory package included: No additional purchase required - all important parts are included for immediate start-up.
• Flexible saw module: Thanks to tilt and height adjustment, you remain flexible in every situation and achieve perfect results.
• Stability and precision: The surface-ground cast-iron table offers maximum stability and durability for exact work.

Technical data

Scope of delivery

• JET JTSS-1600-T panel saw
• Cast iron extension table
• Steel plate extension table with support leg
• Rear extension table with support
• Swing arm assembly
• Crosscut table 680 × 580 mm with roller
• Crosscut fence extendable to 2200 mm with flip stop
• Sliding table 1600 × 270 mm with carrier and 2 support legs
• Rip fence with rip fence rail and rear support rail
• Mitre gauge
• Hold-down with fence
• Blade guard
• Saw blade Ø 315 × 30 × 3.2 mm, 48 teeth
• Scoring blade Ø 90 × 20 × 2.8 – 3.6 mm, 20 teeth
• Dust port Ø 100 mm
• Dust hose 50 mm
• 2 × hand wheels
• Hardware
• Tools (open-end wrench 13 – 15 mm, arbor wrench, arbor pin, hex keys 3 / 4 / 5 / 6 mm)
• Push stick
• Edge shoe
• Operating manual
• Spare parts list

Target audience

Professional users, workshops and demanding trade businesses.

Application

For typical panel saw applications in workshops and production.

Product safety

• Manufacturer: JPW Industries, Inc.
• Website: https://www.jettools.com/
• Distributor / service contact: Christian Satter / ToolParts-Service
• Address: Kleinhaslach 35, 90599 Dietenhofen, Deutschland
• Website: https://toolparts-group.com/

Product identifiers

• Article number: JTSS-1600-T
• MPN: JTSS-1600-T
• EAN/GTIN: 7612375526486
