JET / PROMAC precision linear scale L, 1600 mm
Item number51000540
Price on request
JET / PROMAC precision linear scale, size L, measuring length 1600 mm – accessory for digital readouts (DRO). Price and delivery time on request.
On request
Stock sourceStock on request
Customer groupEnquiry only
In use
Overview

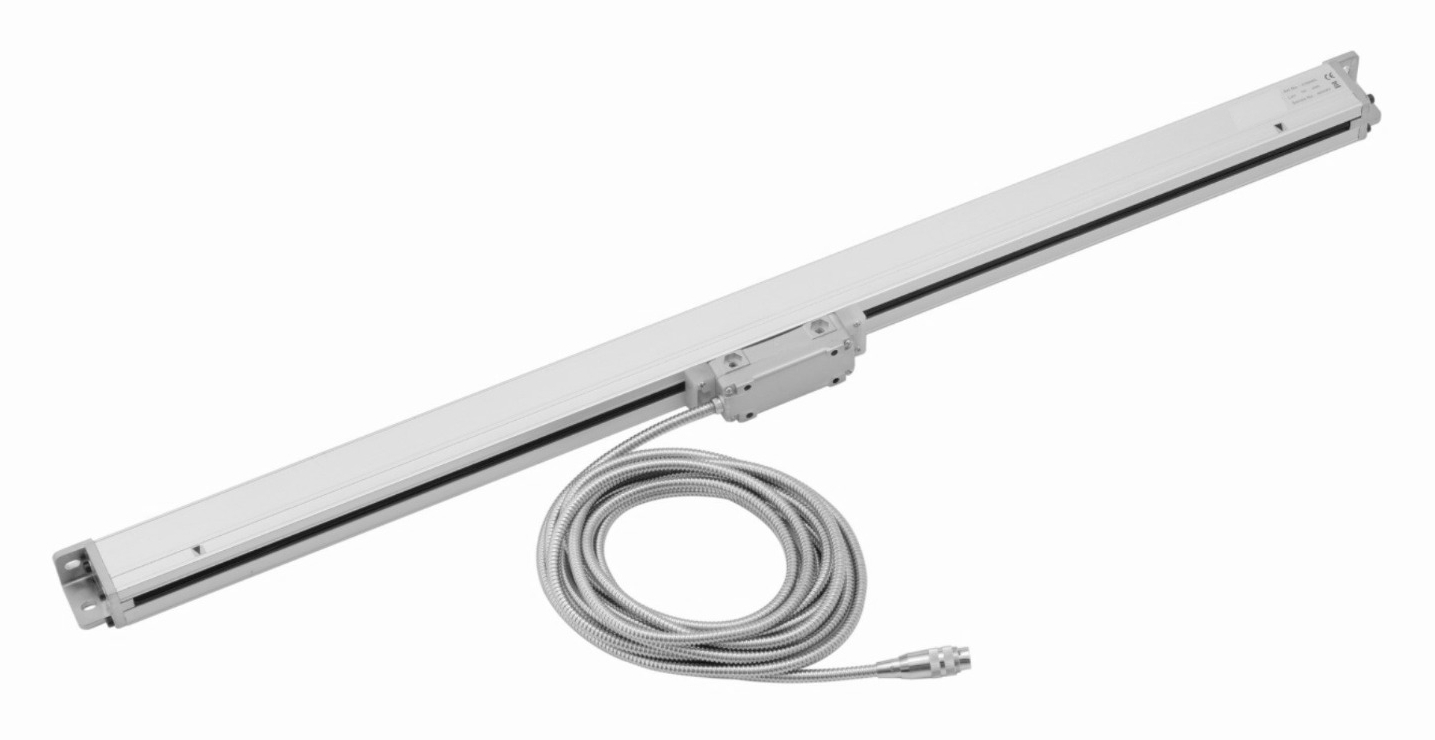

The JET / PROMAC precision linear scale L, 1600 mm is a precision linear glass scale for JET and PROMAC digital readouts. Size L, measuring length L0 1600 mm. The scale is used for position measurement on machine tools – such as lathes, milling machines or mill-drills – together with a compatible digital readout (DRO). Mounting dimensions L1–L5, H1–H5, W3/W5 and fixing threads T1–T5 as per technical data. Price and delivery time on request.
Benefits
- Size L, measuring length L0 1600 mm
- suitable for JET / PROMAC digital readouts (DRO)
- mounting dimensions and fixing threads as per data sheet
Technical data
Machining data
- Size
- L
- Measuring length L0
- 1600 mm
- L1
- 60 mm
- L2
- 60 mm
- L3
- 90 mm
- L4
- 1742 mm
- L5
- 1762 mm
- H1
- 31.5 mm
- H2
- 27 mm
- H4
- 50 mm
- H5
- 80.5 mm
- W3
- 37 mm
- W5
- 38 mm
- T1
- M6 / Ø 5
- T2
- M5 (4x)
- T4
- Ø 7 mm
- T5
- Ø 7 mm
Additional data
- Marke
- JET / PROMAC
- Baugröße
- L
- Messlänge L0
- 1600 mm
- Intended use
- Zubehör für Digitalanzeigen (DRO)
- Product type
- Zubehör
Delivery & scope of delivery
Scope of delivery
- Precision linear scale with read head
- Connection cable with plug
- Mounting material as per manufacturer scope of delivery
Downloads
Operating manuals and spare-parts listsProduct safety
CAUTION: Installation and connection only by competent personnel. Switch off the machine and readout before work and prevent accidental restart. Do not clean scales with compressed air or a spray gun.
Use for position measurement on machine tools with a compatible digital readout. Follow the instructions for the machine, readout and scale.
Installation and connection must be carried out by competent personnel. Before work, switch off the machine and readout and prevent accidental restart.
Mount the scale and read head without mechanical strain. Do not exceed the intended measuring travel.
Route cables so they cannot be crushed, sharply bent or caught by moving parts.
Do not continue using damaged scales, read heads, connectors or cables.
Do not clean the scales with compressed air or a spray gun.
