JET / PROMAC precision linear scale L, 750 mm
Item number51000431
446,25 € gross375,00 € netincl. VAT · Shipping costs
JET / PROMAC precision linear scale, size L, measuring length 750 mm – accessory for digital readouts (DRO). Price and delivery time on request.
Available
Delivery / availability: Delivery time approx. 2–3 weeks. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction.
Customer groupPurchase: businesses and private customers

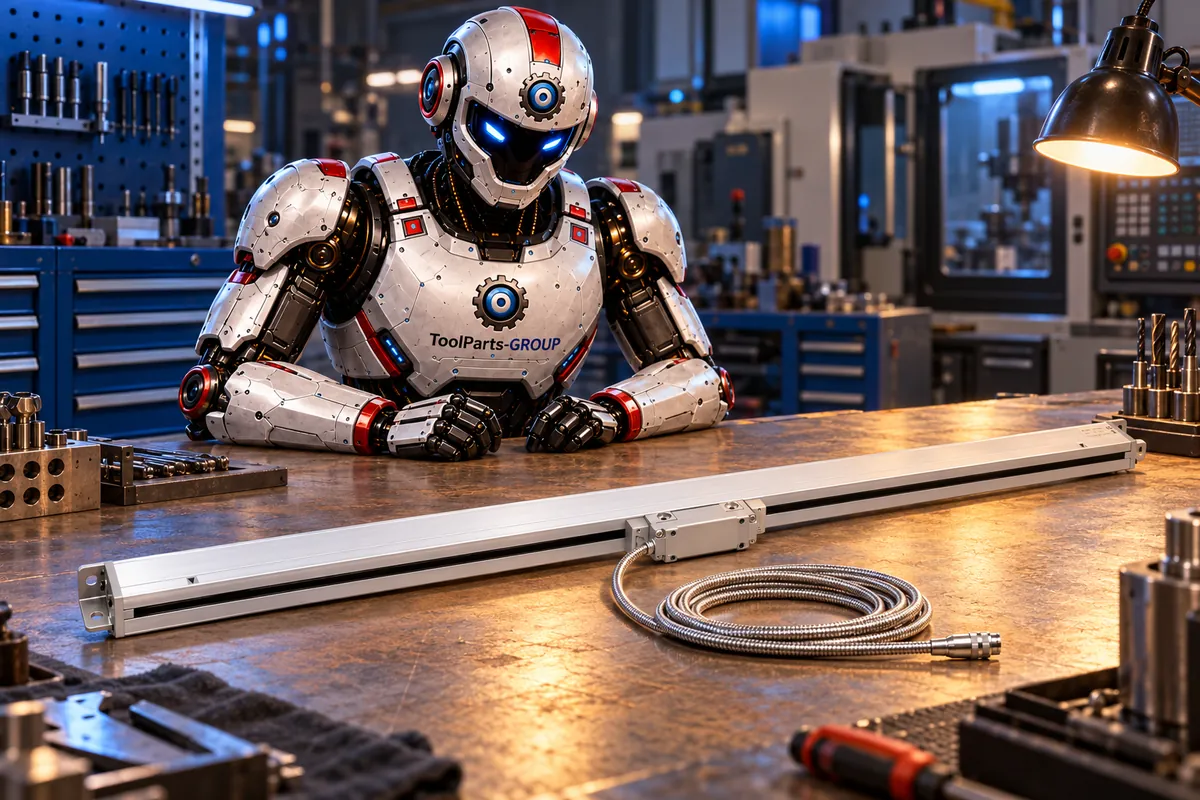

In use
Overview

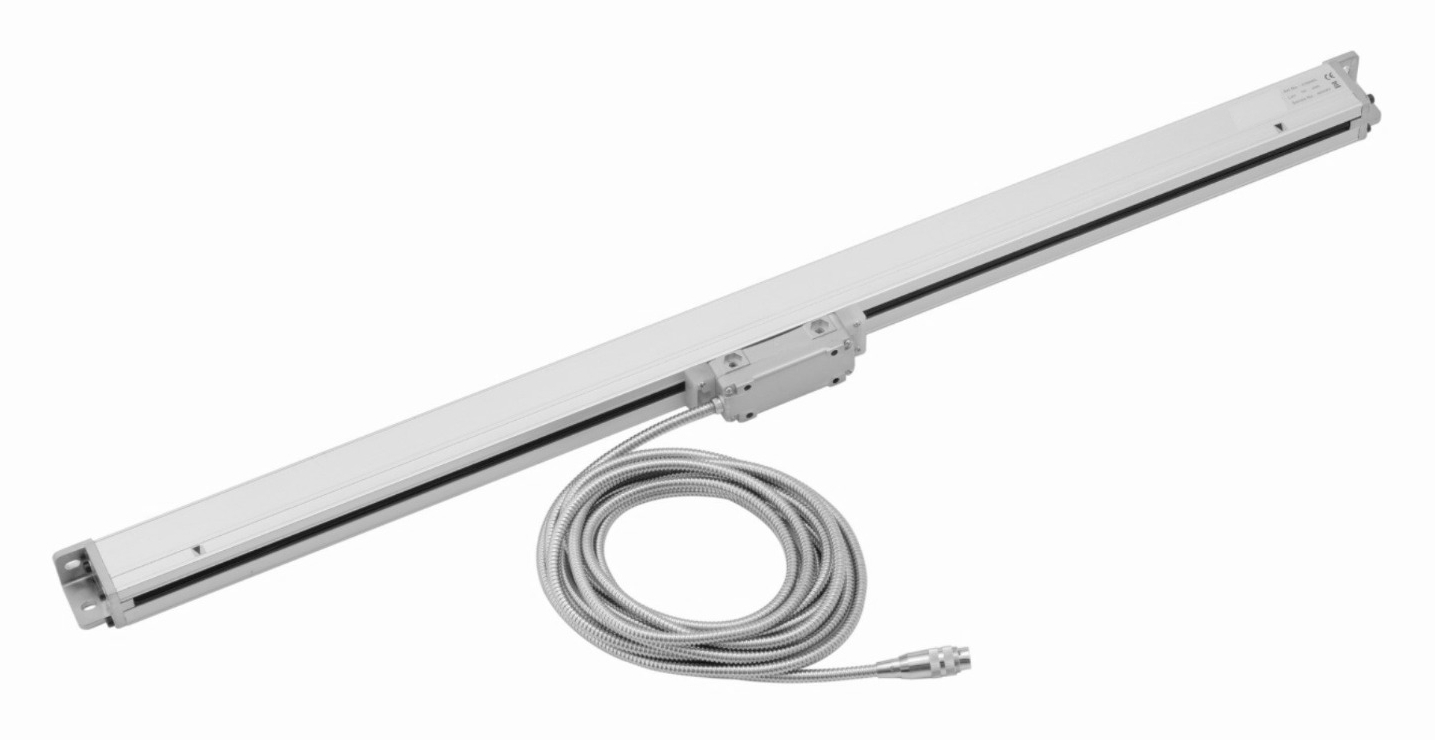

The JET / PROMAC precision linear scale L, 750 mm is a precision linear glass scale for JET and PROMAC digital readouts. Size L, measuring length L0 750 mm. The scale is used for position measurement on machine tools – such as lathes, milling machines or mill-drills – together with a compatible digital readout (DRO). Mounting dimensions L1–L5, H1–H5, W3/W5 and fixing threads T1–T5 as per technical data. Price and delivery time on request.
Benefits
- Size L, measuring length L0 750 mm
- suitable for JET / PROMAC digital readouts (DRO)
- mounting dimensions and fixing threads as per data sheet
Technical data
Machining data
- Size
- L
- Measuring length L0
- 750 mm
- L1
- 60 mm
- L2
- 60 mm
- L3
- 90 mm
- L4
- 892 mm
- L5
- 912 mm
- H1
- 31.5 mm
- H2
- 27 mm
- H4
- 50 mm
- H5
- 80.5 mm
- W3
- 37 mm
- W5
- 38 mm
- T1
- M6 / Ø 5
- T2
- M5 (4x)
- T4
- Ø 7 mm
- T5
- Ø 7 mm
Additional data
- Marke
- JET / PROMAC
- Baugröße
- L
- Messlänge L0
- 750 mm
- Intended use
- Zubehör für Digitalanzeigen (DRO)
- Product type
- Zubehör
Delivery & scope of delivery
Scope of delivery
- Precision linear scale with read head
- Connection cable with plug
- Mounting material as per manufacturer scope of delivery
Downloads
Operating manuals and spare-parts listsProduct safety
CAUTION: Installation and connection only by competent personnel. Switch off the machine and readout before work and prevent accidental restart. Do not clean scales with compressed air or a spray gun.
Use for position measurement on machine tools with a compatible digital readout. Follow the instructions for the machine, readout and scale.
Installation and connection must be carried out by competent personnel. Before work, switch off the machine and readout and prevent accidental restart.
Mount the scale and read head without mechanical strain. Do not exceed the intended measuring travel.
Route cables so they cannot be crushed, sharply bent or caught by moving parts.
Do not continue using damaged scales, read heads, connectors or cables.
Do not clean the scales with compressed air or a spray gun.
Manufacturer
JPW Industries427 New Sanford RoadTN 37086 La VergneUnited StatesEU economic operator
ToolParts-Service Christian SatterKleinhaslach 3590599 DietenhofenGermanyService & spare parts
Technical documents, spare-parts identification and repair support remain permanently available through ToolParts-Service.
