TOOL FRANCE TFD-26115 Floor Drill Press
Item numberTFD-26115
Price on request
The Tool France TFD-26115 is a floor drill press with 230 V motor and 12 speeds from 150 – 2840 rpm. It drills up to 26 mm with a 280 mm throat.
On request
Stock sourceAvailable ex works
Customer groupPrivate and business customers

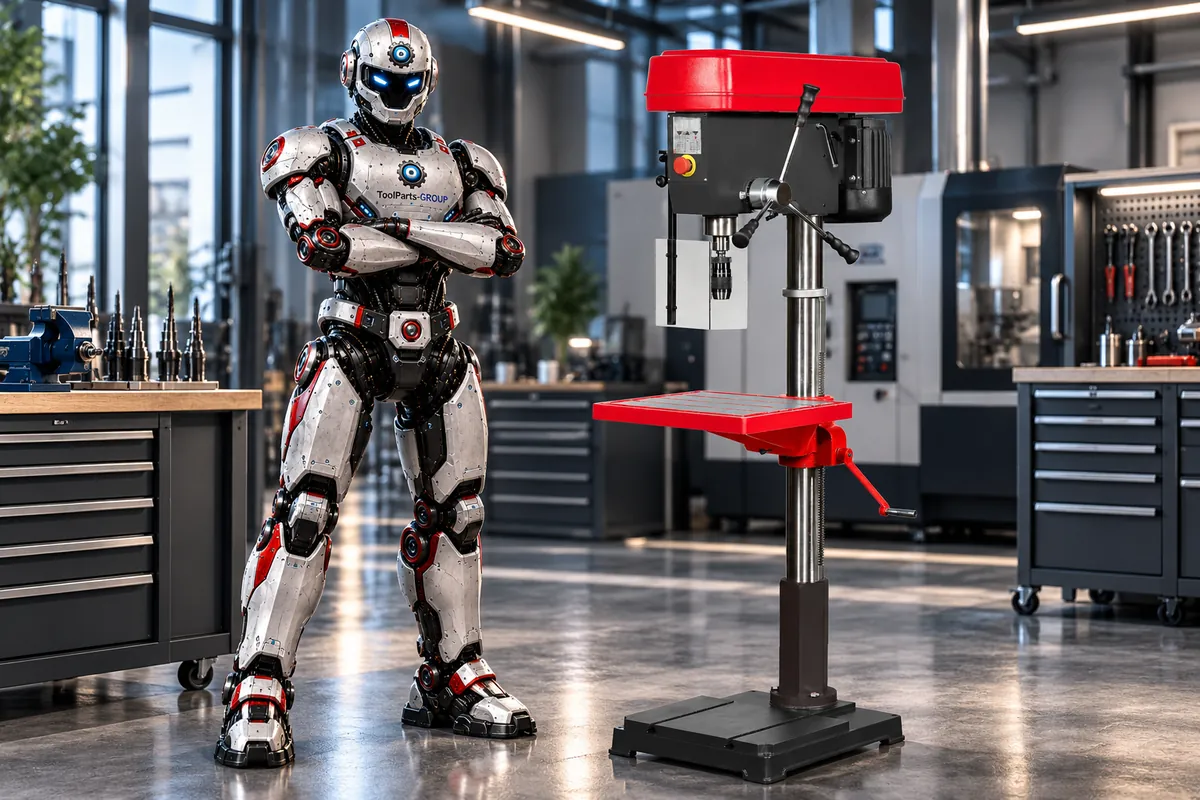

In use
Overview
The Tool France TFD-26115 is a floor drill press for workshops, trades, maintenance and schools. The 230 V motor with 0.75 kW drives the spindle via stepped pulleys, with 12 speeds from 150 to 2840 rpm. Drilling capacity is 26 mm and the spindle taper is MT3.
The throat is 280 mm and the spindle stroke 115 mm. Up to 690 mm is available between spindle nose and table, and up to 1220 mm to the base. Feed is manual via the 62 mm quill. The head of matured high-density grey cast iron and the 92 mm column provide rigidity and long-term accuracy. The table measures 428 × 475 mm.
Supplied with the machine are a self-tightening chuck with MT3 adapter, three handle knobs with bar, a riser handle, locking handles, screws and an Allen key. The machine weighs 164 kg net.
Features at a glance
- Drilling capacity 26 mm, MT3 spindle
- 12 speeds 150 – 2840 rpm
- Throat 280 mm, spindle stroke 115 mm
- Grey cast iron head
- Table 428 × 475 mm
- Self-tightening chuck included
Benefits
- Drilling capacity up to 26 mm • Twelve spindle speeds • Interlocked chuck guard
Technical data
Electrical data
- Voltage
- 230 V, 50 Hz
- Phases
- 1
- Motor output
- 0.75 kW
- Installation fuse
- min. 10 A
Machining data
- Drilling capacity steel
- 26 mm
- Spindle taper
- MT3
- Throat
- 280 mm
- Spindle stroke
- 115 mm
- Number of speeds
- 12
- Speed range
- 150 – 2840 rpm
- Spindle nose to table
- 690 mm
- Spindle nose to base
- 1220 mm
- Quill diameter
- 62 mm
- Column diameter
- 92 mm
Table
- Table size
- 428 × 475 mm
- Table tilt
- 0 – 45°
- Table rotation
- 360°
- T-slots (table and base)
- 12 mm
- Max. table load
- 60 kg
Dimensions
- Dimensions (H × W × D)
- 1750 × 460 × 840 mm
Weight
- Net weight
- 164 kg
Additional data
- Noise level
- below 70 dB
Delivery & scope of delivery
Scope of delivery
- TOOL FRANCE TFD-26115 floor drill press
- Self-tightening chuck B16
- Adapter MT3/B18
- 3 × handle knob with bar
- Riser handle
- 2 × locking handle
- Handle knob
- 3 × screw with lock washer
- Allen key
Downloads
Operating manuals and spare-parts listsProduct safety
WARNING: Entanglement, crushing and cutting hazards from rotating tools and unsecured workpieces. Clamp the workpiece securely and disconnect the machine from the power supply before changing the chuck or tool.
Product safety – TOOL FRANCE TFD-26115 Floor Drill Press. Use only for its intended purpose and within the limits specified in the original operating instructions. Operation is restricted to trained adults. Before each use, inspect the machine, guards, controls and power connection; do not operate damaged or incomplete equipment. Ensure stable installation, a clear and well-lit work area and the power supply stated on the rating plate. Before adjustment, cleaning or maintenance, switch off, disconnect the machine from the power supply and wait until all movement has stopped. Wear close-fitting clothing and suitable eye and hearing protection; remove jewellery and secure long hair. Never remove or bypass guards. Always secure workpieces with a vice or suitable clamps. Remove chuck keys before starting, keep hands away from the spindle and tool, and remove swarf only after the machine has stopped using a suitable tool.
Manufacturer
Tool France SAS9 rue des Pyrénées91090 LissesFranceEU economic operator
Tool France SAS9 rue des Pyrénées91090 LissesFranceService & spare parts
Technical documents, spare-parts identification and repair support remain permanently available through ToolParts-Service.
