TOOL FRANCE TFDG-0313 Drill Bit Sharpener
Item numberTFDG-0313
570,01 € gross479,00 € netincl. VAT · Shipping costs
Compact drill bit sharpener for 3–13 mm HSS and HSS-Co twist drills, with adjustable point angle and a CBN grinding wheel.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

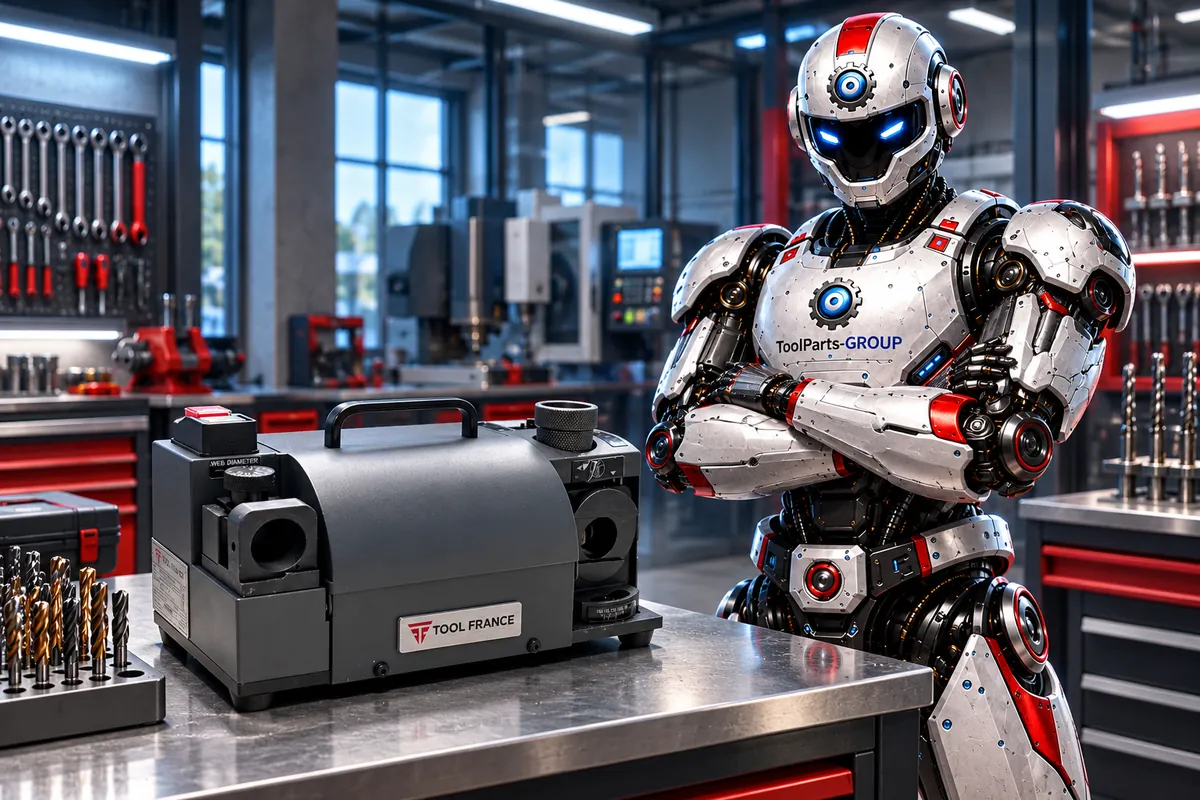

In use
Overview
Compact drill bit sharpener for 3–13 mm HSS and HSS-Co twist drills, with adjustable point angle and a CBN grinding wheel.
ER20 collets guide the drill accurately for repeatable sharpening of the cutting edges. The standard CBN wheel is intended for HSS, while an optional diamond wheel is available for carbide drills.
- 3–13 mm drill range
- 95–135° point angle
- CBN wheel and eleven ER20 collets
Benefits
- 3–13 mm drill range • 95–135° point angle • CBN wheel and eleven ER20 collets
Technical data
Machining data
- Drill range
- 3–13 mm
- point angle
- 95–135°
- 11 ER20 collets
- 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 mm
- wheel speed
- 5300 m/min
- current
- 0.78 A
- weight
- 10 kg
- dimensions
- 285 × 160 × 145 mm
- CBN wheel
- 78 × 10 × 12.7 mm.
Electrical data
- motor
- 180 W
Delivery & scope of delivery
Scope of delivery
- CBN grinding wheel for HSS
- eleven 3–13 mm ER20 collets
- collet holder
- operating instructions
Downloads
Operating manuals and spare-parts listsProduct safety
WARNING: Risk of injury from grinding-wheel breakage, sparks and rotating parts. Use only undamaged, approved wheels and disconnect the machine from the power supply before adjustment or wheel replacement.
Product safety – TOOL FRANCE TFDG-0313 Drill Bit Sharpener. Use only for its intended purpose and within the limits specified in the original operating instructions. Operation is restricted to trained adults. Before each use, inspect the machine, guards, controls and power connection; do not operate damaged or incomplete equipment. Ensure stable installation, a clear and well-lit work area and the power supply stated on the rating plate. Before adjustment, cleaning or maintenance, switch off, disconnect the machine from the power supply and wait until all movement has stopped. Wear close-fitting clothing and suitable eye and hearing protection; remove jewellery and secure long hair. Never remove or bypass guards. Secure the drill correctly in the specified collet and inspect the grinding wheel before each use. Keep covers closed and avoid inhaling grinding dust.
Manufacturer
Tool France SAS9 rue des Pyrénées91090 LissesFranceEU economic operator
Tool France SAS9 rue des Pyrénées91090 LissesFranceService & spare parts
Technical documents, spare-parts identification and repair support remain permanently available through ToolParts-Service.
