TOOL FRANCE TFDG-0332 Drill Bit Sharpener
Item numberTFDG-0332
2.021,81 € gross1.699,00 € netincl. VAT · Shipping costs
Drill bit sharpener for 2.1–32 mm HSS and HSS-Co twist drills, supplied with ER20 and ER40 collets and two CBN grinding wheels.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

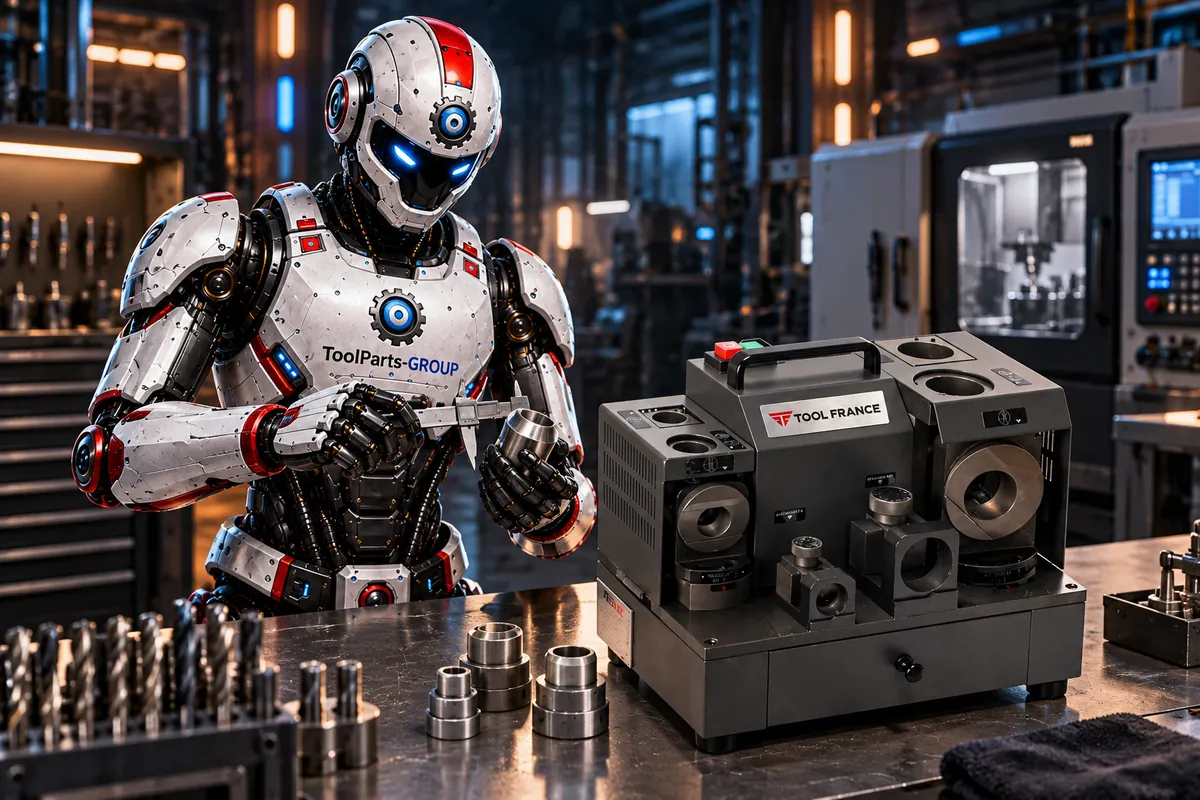

In use
Overview
Drill bit sharpener for 2.1–32 mm HSS and HSS-Co twist drills, supplied with ER20 and ER40 collets and two CBN grinding wheels.
The wide clamping range covers both small and large twist drills. Adjustable point angles and separate grinding ranges support clean, repeatable results; optional diamond wheels extend use to carbide drills.
- 2.1–32 mm drill range
- 85–140° point angle
- ER20/ER40 collets and two CBN wheels
Benefits
- 2.1–32 mm drill range • 85–140° point angle • ER20/ER40 collets and two CBN wheels
Technical data
Electrical data
- DC motor
- 0.25 kW
- motor speed
- 4400 rpm
Machining data
- supply
- 1~230 V, PE, 50 Hz
- ER20
- 11 collets 3–13 mm
- ER40
- 13 collets 14–26 mm
- dimensions
- 355 × 215 × 300 mm
- shipping size
- 400 × 280 × 330 mm
- net weight
- 34 kg
- shipping weight
- 36 kg.
Delivery & scope of delivery
Scope of delivery
- Two CBN grinding wheels for HSS
- ER20 and ER40 collets for 2.1–32 mm
- collet holders
- operating instructions
Downloads
Operating manuals and spare-parts listsProduct safety
WARNING: Risk of injury from grinding-wheel breakage, sparks and rotating parts. Use only undamaged, approved wheels and disconnect the machine from the power supply before adjustment or wheel replacement.
Product safety – TOOL FRANCE TFDG-0332 Drill Bit Sharpener. Use only for its intended purpose and within the limits specified in the original operating instructions. Operation is restricted to trained adults. Before each use, inspect the machine, guards, controls and power connection; do not operate damaged or incomplete equipment. Ensure stable installation, a clear and well-lit work area and the power supply stated on the rating plate. Before adjustment, cleaning or maintenance, switch off, disconnect the machine from the power supply and wait until all movement has stopped. Wear close-fitting clothing and suitable eye and hearing protection; remove jewellery and secure long hair. Never remove or bypass guards. Secure the drill correctly in the specified collet and inspect the grinding wheel before each use. Keep covers closed and avoid inhaling grinding dust.
Manufacturer
Tool France SAS9 rue des Pyrénées91090 LissesFranceEU economic operator
Tool France SAS9 rue des Pyrénées91090 LissesFranceService & spare parts
Technical documents, spare-parts identification and repair support remain permanently available through ToolParts-Service.
