TOOL FRANCE TFG-150-M Bench Grinder
Item numberTFG-150-M
Price on request
The Tool France TFG-150-M is a bench grinder with 150 mm grinding wheels and 230 V motor. With 0.3 kW and 2850 rpm it is suited to sharpening and deburring in the workshop.
Currently out of stock – enquire
Customer groupPrivate and business customers

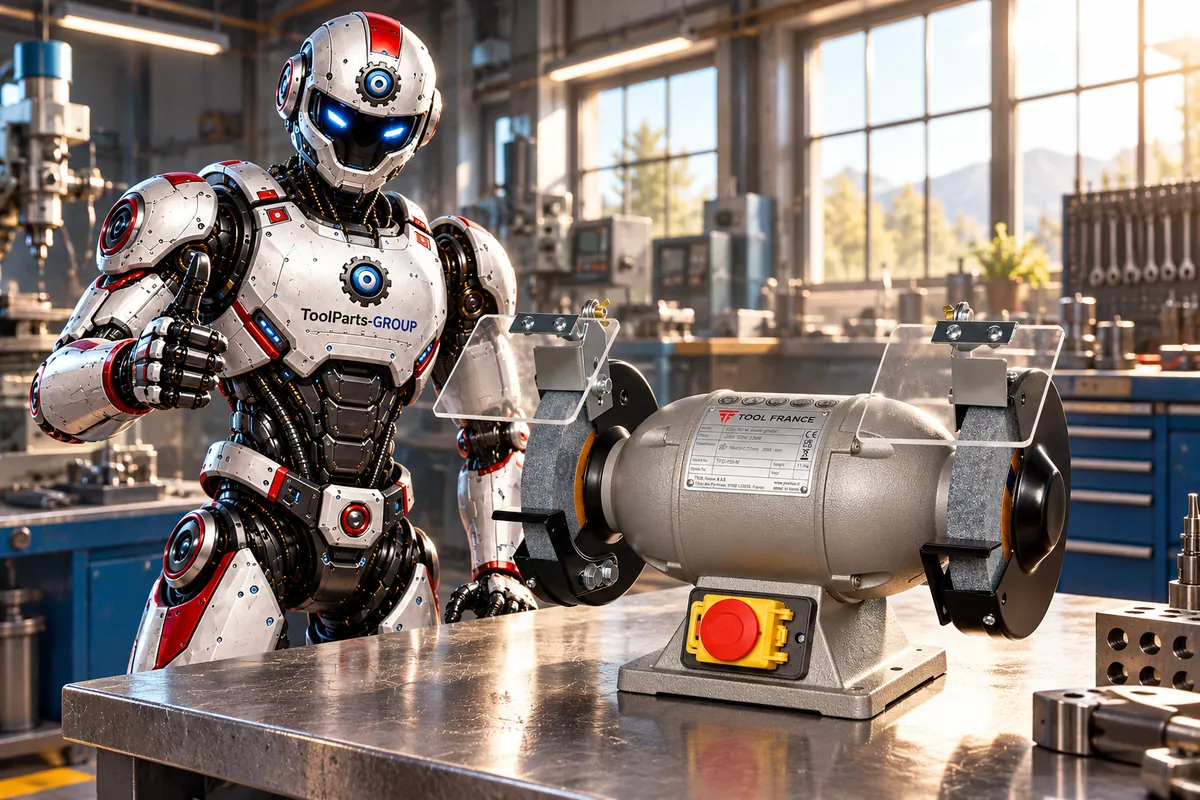

In use
Overview
The Tool France TFG-150-M is a double-ended bench grinder for sharpening tools and for deburring and dressing small metal parts in workshops, trades and schools. The 230 V motor with 0.3 kW drives a 150 × 25 × 20 mm grinding wheel on each side at 2850 rpm.
Both wheels run under guards with plexiglass eye shields and spark guards. A tool rest, fixed with M6 screws, sits in front of each wheel. With dimensions of 400 × 190 × 270 mm and a weight of 11 kg the machine fits on the workbench, and on the optional stand the height is 1200 mm.
Included are two grinding wheels 150 × 25 mm (grit 36 and 60), two plexiglass eye shields with brackets, spark guards and fixings, and the tool rests with screws and washers. The sound level is below 75 dB.
Features at a glance
- Two grinding wheels 150 × 25 × 20 mm
- Motor 0.3 kW, 230 V, 2850 rpm
- Plexiglass eye shields with spark guards
- Tool rests
- Weight 11 kg
- Stand available as an option
Benefits
- No-volt release protection • Adjustable tool rests • Two grinding wheels in 36 and 60 grit
Technical data
Electrical data
- Voltage
- 230 V, 50 Hz
- Phases
- 1
- Motor output
- 0.3 kW
- Installation fuse
- min. 10 A
Machining data
- Grinding wheel
- 150 × 25 × 20 mm
- Speed
- 2850 rpm
Dimensions
- Dimensions (W × D × H)
- 400 × 190 × 270 mm
- Height with stand (option)
- 1200 mm
Weight
- Net weight
- 11 kg
Additional data
- Noise level
- below 75 dB
Delivery & scope of delivery
Scope of delivery
- TOOL FRANCE TFG-150-M bench grinder
- Grinding wheel 150 × 25 mm, grit 36
- Grinding wheel 150 × 25 mm, grit 60
- 2 × plexiglass eye shields with brackets, spark guards and fixings
- Tool rest with 4 × screw M6 × 10 and 4 × washer M6
Downloads
Operating manuals and spare-parts listsProduct safety
WARNING: Risk of injury from grinding-wheel breakage, sparks and workpiece entanglement. Inspect wheels before use, adjust the eye shields and disconnect the machine from the power supply before changing a wheel or brush.
Product safety – TOOL FRANCE TFG-150-M Bench Grinder. Use only for its intended purpose and within the limits specified in the original operating instructions. Operation is restricted to trained adults. Before each use, inspect the machine, guards, controls and power connection; do not operate damaged or incomplete equipment. Ensure stable installation, a clear and well-lit work area and the power supply stated on the rating plate. Before adjustment, cleaning or maintenance, switch off, disconnect the machine from the power supply and wait until all movement has stopped. Wear close-fitting clothing and suitable eye and hearing protection; remove jewellery and secure long hair. Never remove or bypass guards. Use only undamaged wheels or brushes rated for the machine speed. Set tool rests with minimal clearance, avoid side loading grinding wheels and keep sparks away from combustible materials.
