TOOL FRANCE TFG-200F-M Schleifbock mit Drahtbürste

TOOL FRANCE TFG-200F-M Bench Grinder with Wire Wheel

Item numberTFG-200F-M

Price on request

The Tool France TFG-200F-M is a grinder with wire brush, each 200 mm in diameter. The 230 V motor with 0.45 kW runs at 2850 rpm.

Currently out of stock – enquire

Customer groupPrivate and business customers

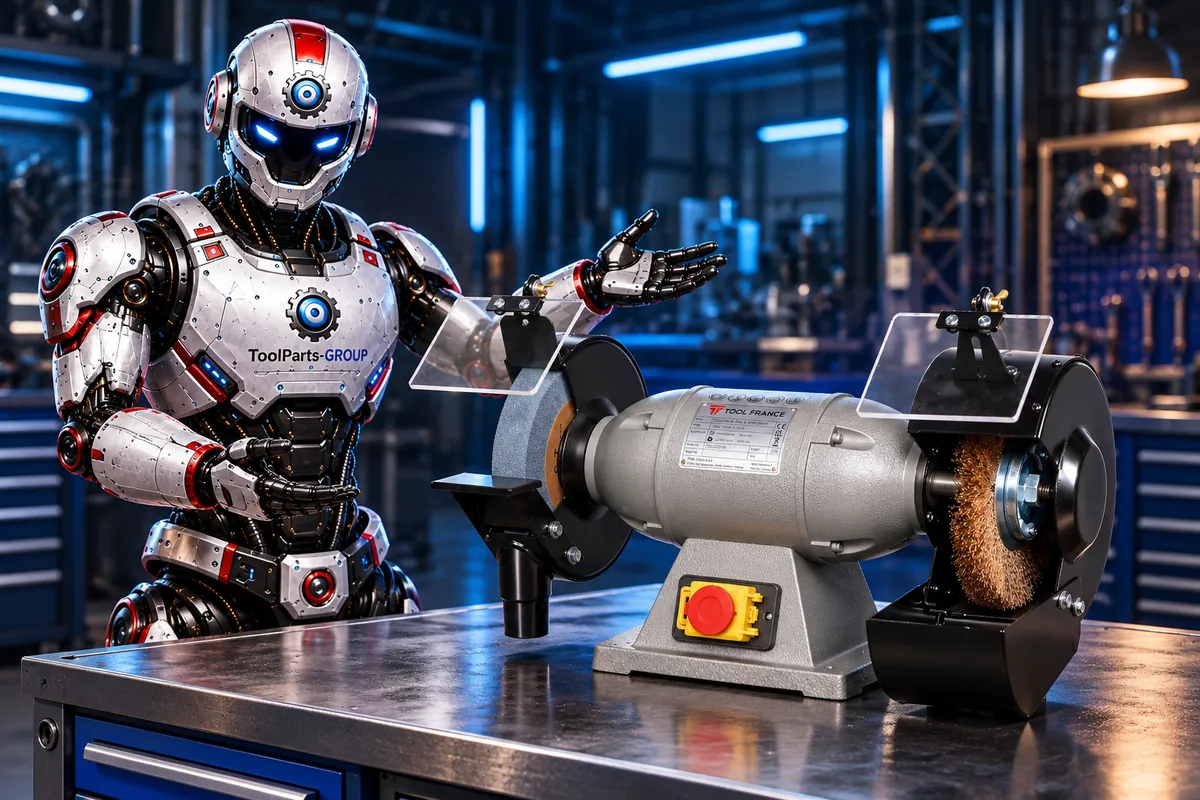

TOOL FRANCE TFG-200F-M Bench Grinder with Wire Wheel – In use

Overview

The Tool France TFG-200F-M combines a grinding wheel with a wire brush and is suited to grinding, deburring, rust removal and cleaning of metal parts in workshops, trades and maintenance. The 230 V motor with 0.45 kW drives the 200 × 25 × 20 mm grinding wheel and the 200 × 19 × 16 mm wire brush at 2850 rpm.

Both sides have a guard with plexiglass eye shield and spark guard. A tool rest is fitted at the grinding wheel, and a chip tray sits under the working area. Extraction ports of Ø 36 mm and Ø 100 mm are provided. The wire brush is balanced with two counterweights on the flanges.

Supplied are two eye shields with brackets, spark guards and fixings, a tool rest and the chip tray with extraction outlet. The machine measures 490 × 300 × 290 mm, weighs 21.5 kg and can be mounted on an optional stand.

Features at a glance

Grinding wheel 200 × 25 × 20 mm
Wire brush 200 × 19 × 16 mm
Motor 0.45 kW, 230 V, 2850 rpm
Extraction ports Ø 36 mm and Ø 100 mm
Chip tray with extraction outlet
Stand available as an option

Benefits

Grinding wheel and wire wheel • No-volt release protection • 36 and 100 mm extraction ports

Technical data

Electrical data

Voltage: 230 V, 50 Hz
Phases: 1
Motor output: 0.45 kW
Current: 2.0 A
Installation fuse: min. 10 A

Machining data

Grinding wheel (D × W × bore): 200 × 25 × 20 mm
Wire brush (D × W × bore): 200 × 19 × 16 mm
Speed: 2850 rpm

Extraction

Dust extraction port: Ø 36 mm + Ø 100 mm

Dimensions

Dimensions (W × D × H): 490 × 300 × 290 mm

Weight

Net weight: 21.5 kg

Additional data

Continuous sound level idle: 75.3 dB(A)

Delivery & scope of delivery

Scope of delivery

TOOL FRANCE TFG-200F-M grinder with wire brush
Grinding wheel 200 × 25 × 20 mm
Wire brush 200 × 19 × 16 mm
Wheel guards
2 × plexiglass eye shields with brackets, spark guards and fixings
Tool rest with 4 × screw M6 × 10 and 4 × washer M6
Chip tray with extraction outlet and fixings

Downloads

Operating manuals and spare-parts lists

Product safety

WARNING: Risk of injury from grinding-wheel breakage, sparks and workpiece entanglement. Inspect wheels before use, adjust the eye shields and disconnect the machine from the power supply before changing a wheel or brush.

Product safety – TOOL FRANCE TFG-200F-M Bench Grinder with Wire Wheel. Use only for its intended purpose and within the limits specified in the original operating instructions. Operation is restricted to trained adults. Before each use, inspect the machine, guards, controls and power connection; do not operate damaged or incomplete equipment. Ensure stable installation, a clear and well-lit work area and the power supply stated on the rating plate. Before adjustment, cleaning or maintenance, switch off, disconnect the machine from the power supply and wait until all movement has stopped. Wear close-fitting clothing and suitable eye and hearing protection; remove jewellery and secure long hair. Never remove or bypass guards. Use only undamaged wheels or brushes rated for the machine speed. Set tool rests with minimal clearance, avoid side loading grinding wheels and keep sparks away from combustible materials.
