TOOL FRANCE TFP-75-605 Belt Grinder

Item numberTFP-75-605

Price on request

The Tool France TFP-75-605 is an industrial belt grinder with a 75 × 2000 mm belt and three-phase drive. Grinding is done on the Ø 200 mm contact wheel or on the free belt at 30 / 34 m/s.

On request

Stock sourceAvailable ex works Customer groupEnquiry only

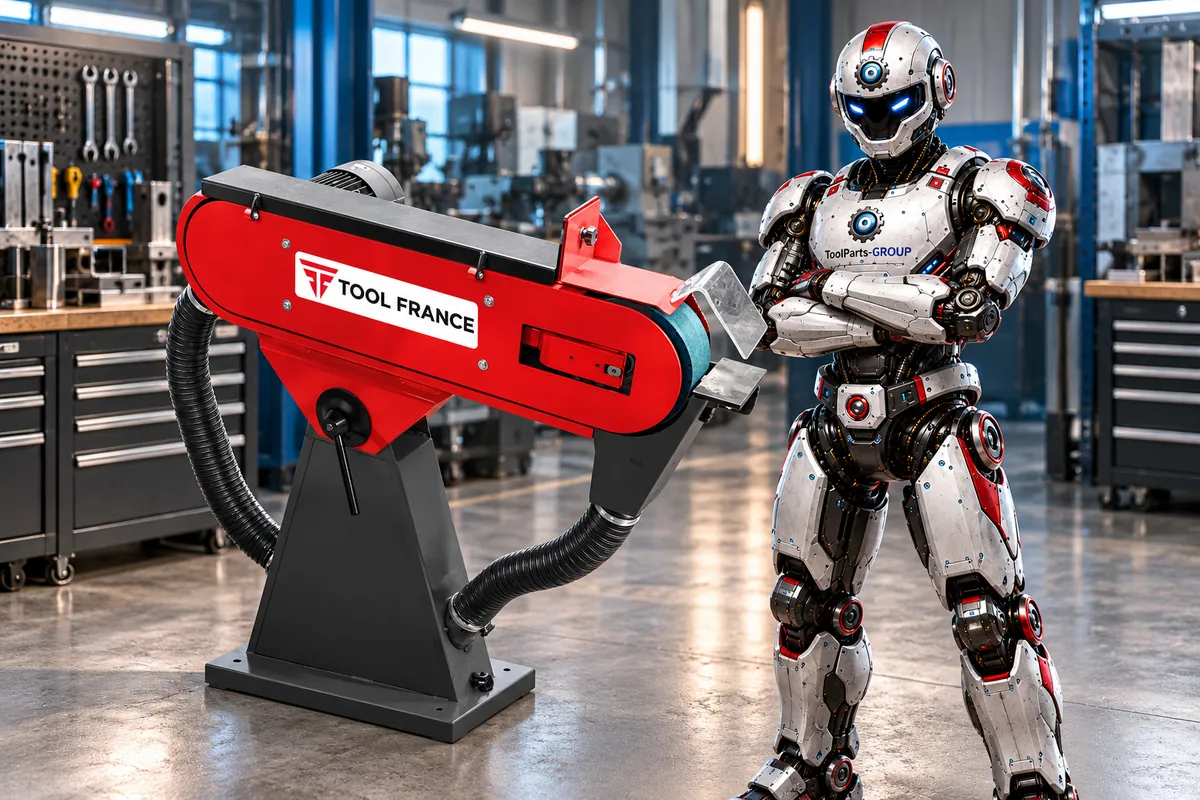

TOOL FRANCE TFP-75-605 Belt Grinder – In use

Overview

The Tool France TFP-75-605 is a stationary belt grinder for grinding, deburring and dressing metal parts in workshops, metal fabrication and production. The three-phase motor for 3 × 400 – 440 V delivers 4.1 / 4.8 HP (approx. 3.0 / 3.5 kW) at 2860 rpm and drives the 75 × 2000 mm belt at 30 / 34 m/s.

Grinding is done either on the Ø 200 × 75 mm contact wheel or, after opening the cover, on the flat free section of the belt. Belt tension is released with a release handle, and belt tracking is adjusted with a knob. The tool rest is adjustable, and an eye shield and spark arrester are fitted.

The machine is anchored to the floor, and the working height can be set between 780 and 1070 mm. It is available in a version without and a version with dust extraction (0.5 HP fan motor) and weighs 60 or 80 kg. Emergency stop and thermal relay are fitted, and a brake module is available as an option. A 75 × 2000 mm sanding belt in grit 80 and the operating manual are included.

Features at a glance

Belt 75 × 2000 mm, 30 / 34 m/s
Contact wheel Ø 200 × 75 mm and free belt section
Three-phase motor approx. 3.0 / 3.5 kW
Working height adjustable 780 – 1070 mm
Version with or without dust extraction
Eye shield, spark arrester and emergency stop

Benefits

Quick sanding-belt changes • Grinding arm tilts forwards and backwards • Motor brake and separate emergency-stop button

Technical data

Electrical data

Voltage: 3 × 400 – 440 V, 50 Hz
Phases: 3
Motor output: 4.1 / 4.8 HP (approx. 3.0 / 3.5 kW)
Current: 10.6 / 6.0 A
Power factor cos φ: 0.91
Protection class: IP54
Motor speed: 2860 rpm
Fan motor (version with extraction): 0.5 HP

Machining data

Sanding belt: 75 × 2000 mm
Belt speed: 30 / 34 m/s
Contact wheel: Ø 200 × 75 mm
Sanding surface: 75 × 660 mm (810 mm including front surface)

Extraction

Dust extraction port: Ø 75 mm

Dimensions

Overall length: 995 mm
Height (adjustable): 780 – 1070 mm
Packing on pallet (L × W × H): 1200 × 800 × 1200 mm

Weight

Weight without / with extraction: 60 / 80 kg

Additional data

Noise level: 80 dB(A)

Delivery & scope of delivery

Scope of delivery

TOOL FRANCE TFP-75-605 belt grinder
Sanding belt 75 × 2000 mm, grit 80
Operating manual

Downloads

Operating manuals and spare-parts lists

Product safety

WARNING: Entanglement, abrasion and injury hazards from the sanding belt or grinding wheel. Set guards and work supports correctly and disconnect the machine from the power supply before changing a belt or wheel.

Product safety – TOOL FRANCE TFP-75-605 Belt Grinder. Use only for its intended purpose and within the limits specified in the original operating instructions. Operation is restricted to trained adults. Before each use, inspect the machine, guards, controls and power connection; do not operate damaged or incomplete equipment. Ensure stable installation, a clear and well-lit work area and the power supply stated on the rating plate. Before adjustment, cleaning or maintenance, switch off, disconnect the machine from the power supply and wait until all movement has stopped. Wear close-fitting clothing and suitable eye and hearing protection; remove jewellery and secure long hair. Never remove or bypass guards. Check abrasive condition and tracking before use. Guide the workpiece securely on the support, keep hands clear of rollers and the grinding area, and use effective dust extraction.
