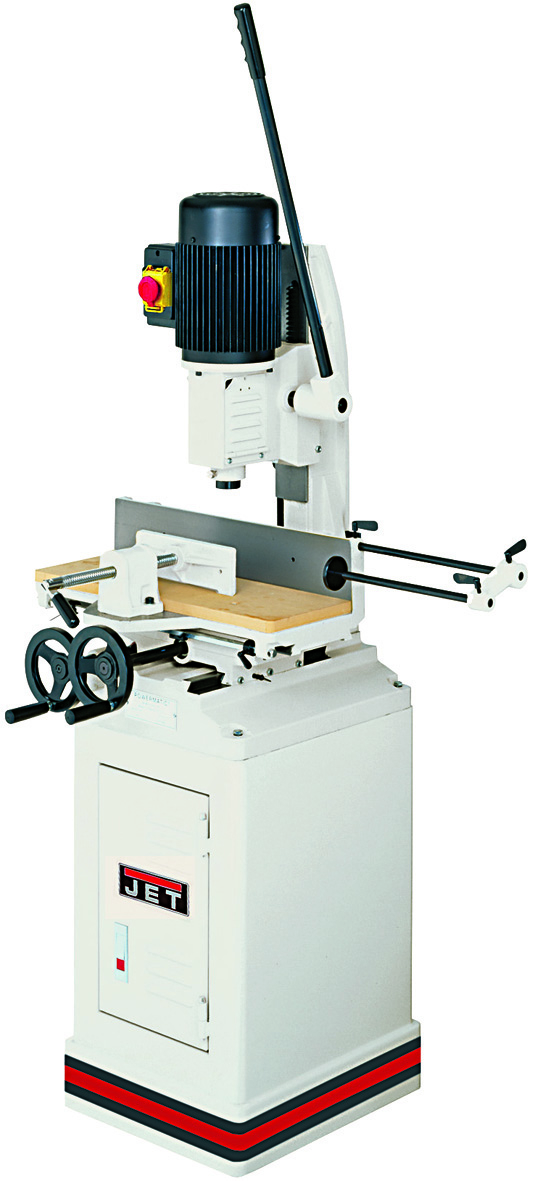

JET 719A-M Mortising machine

The JET 719A-M is a mortiser for joinery shops, window and stair making and schools. It is intended for mortising wood and wood substitutes and uses a hollow chisel and bit to cut square mortises for frame, furniture and chair joints.

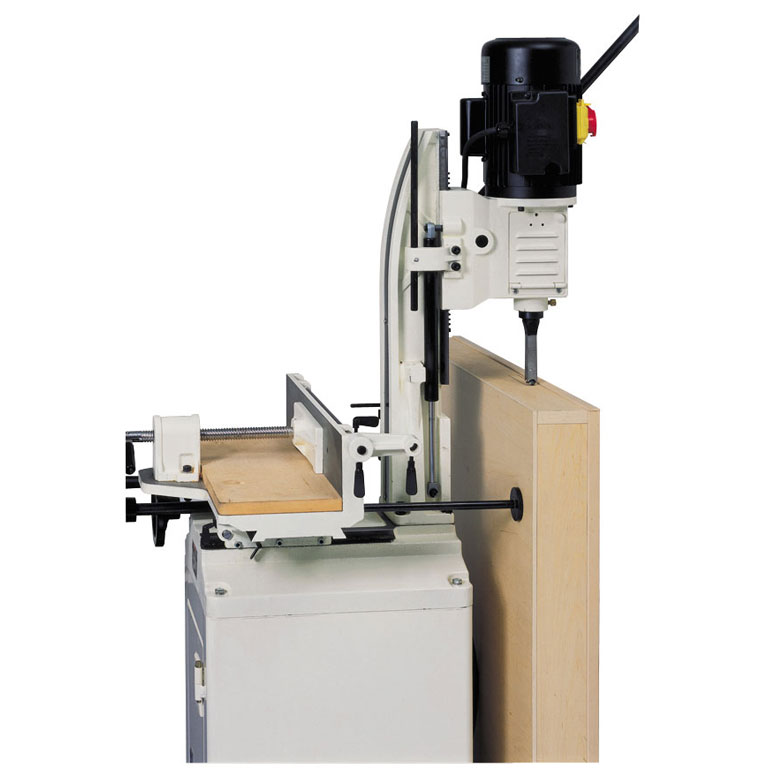

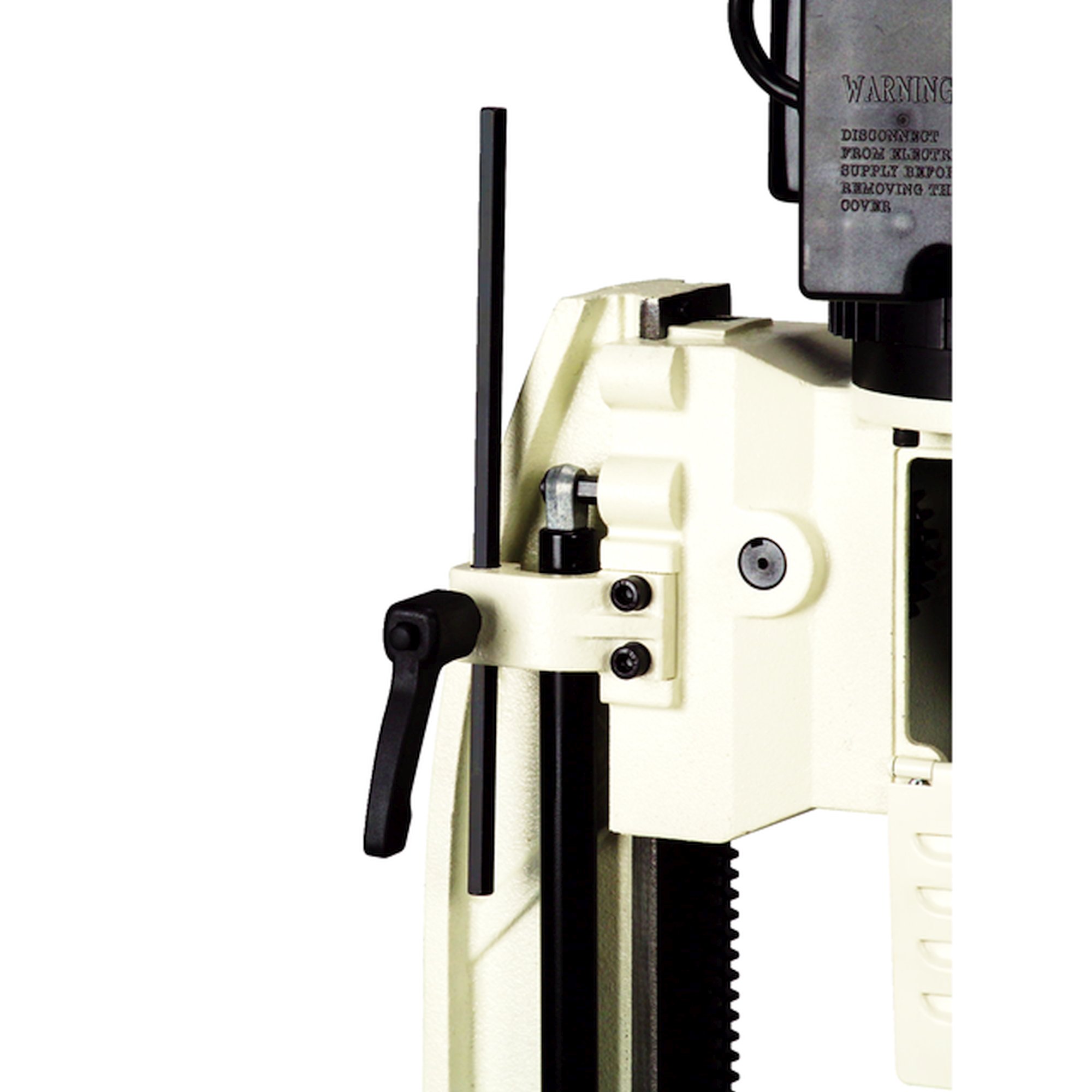

The 230 V motor with 0.75 kW runs at 1450 rpm. Hollow chisels up to 25 × 25 mm are fitted via adapter bushings for shank sizes 5/8 / 3/4 / 13/16 / 1-3/16 inch, and the stroke is 200 mm. The head runs in a dovetail guide and is adjusted by rack, with a gas strut balancing its weight. The head rotates by 180°, for example for boring door lock pockets. The machine stands on an enclosed base cabinet with storage shelf.

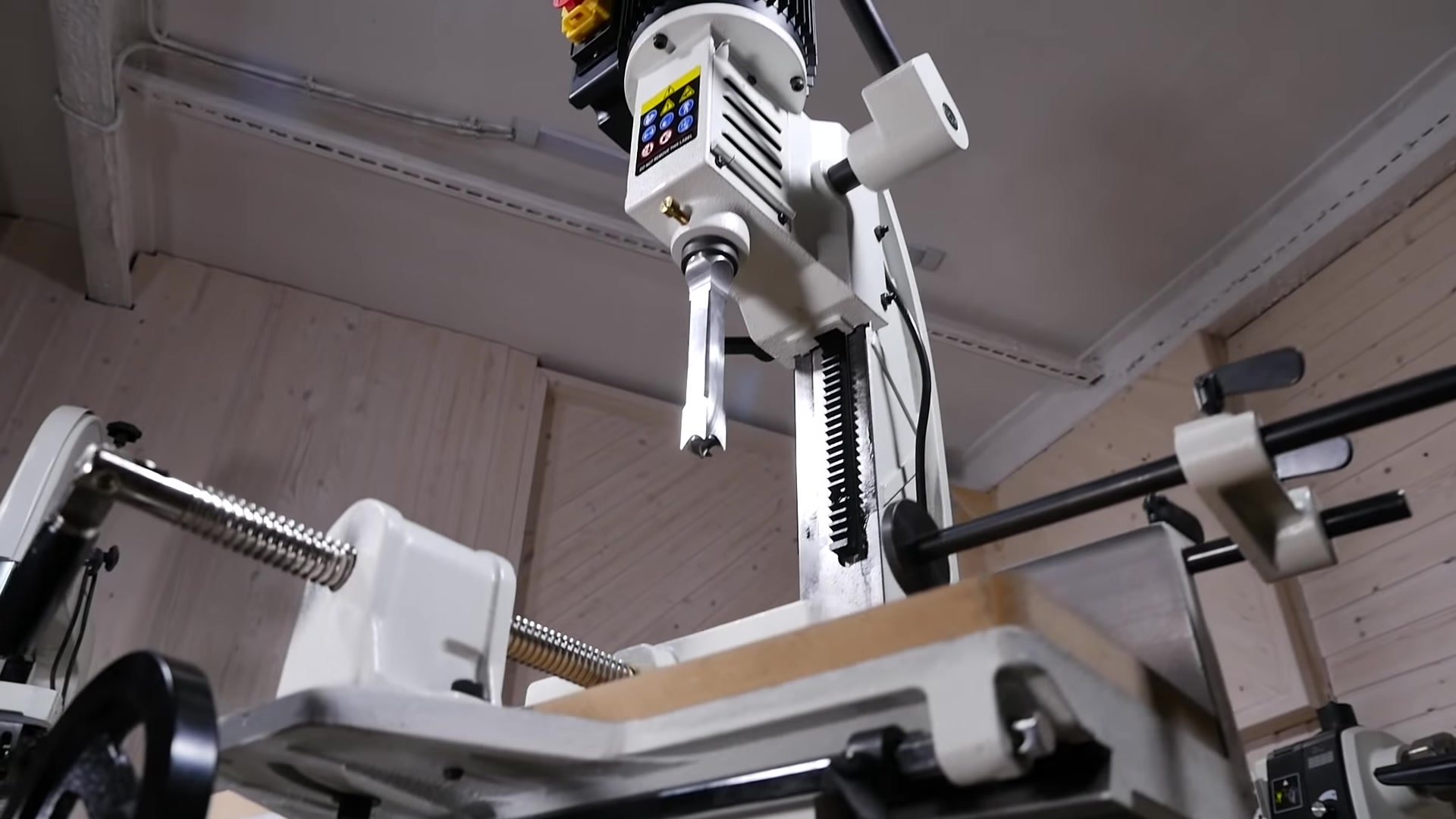

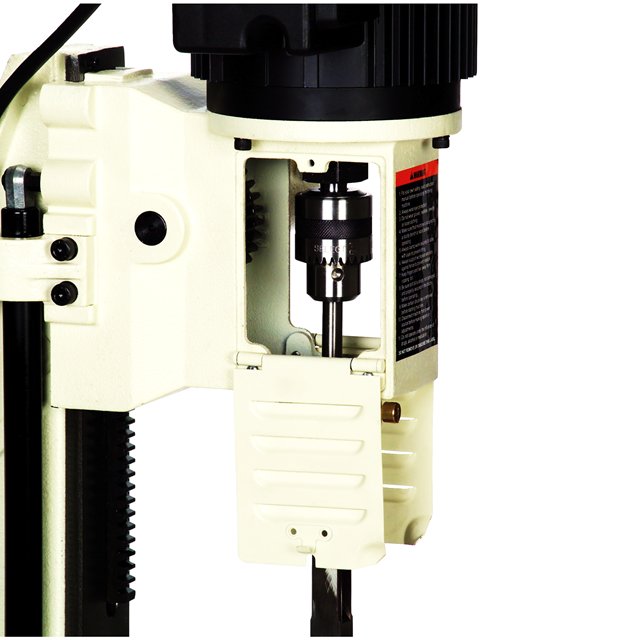

The 180 × 520 mm compound table travels 400 / 100 mm longitudinally / crosswise via large handwheels. End stops and a quick-action clamp support series work. Supplied with 13 mm geared chuck, spindle extension, four adapter bushings, MDF table surface, length stop and depth stop. Hollow chisels are not included.

Features at a glance

• 230 V motor, 0.75 kW
• Chisels up to 25 × 25 mm, stroke 200 mm
• Compound table 180 × 520 mm, travel 400 / 100 mm
• Head rotates by 180°
• Base cabinet with storage shelf

Benefits

• Powerful motor for demanding applications

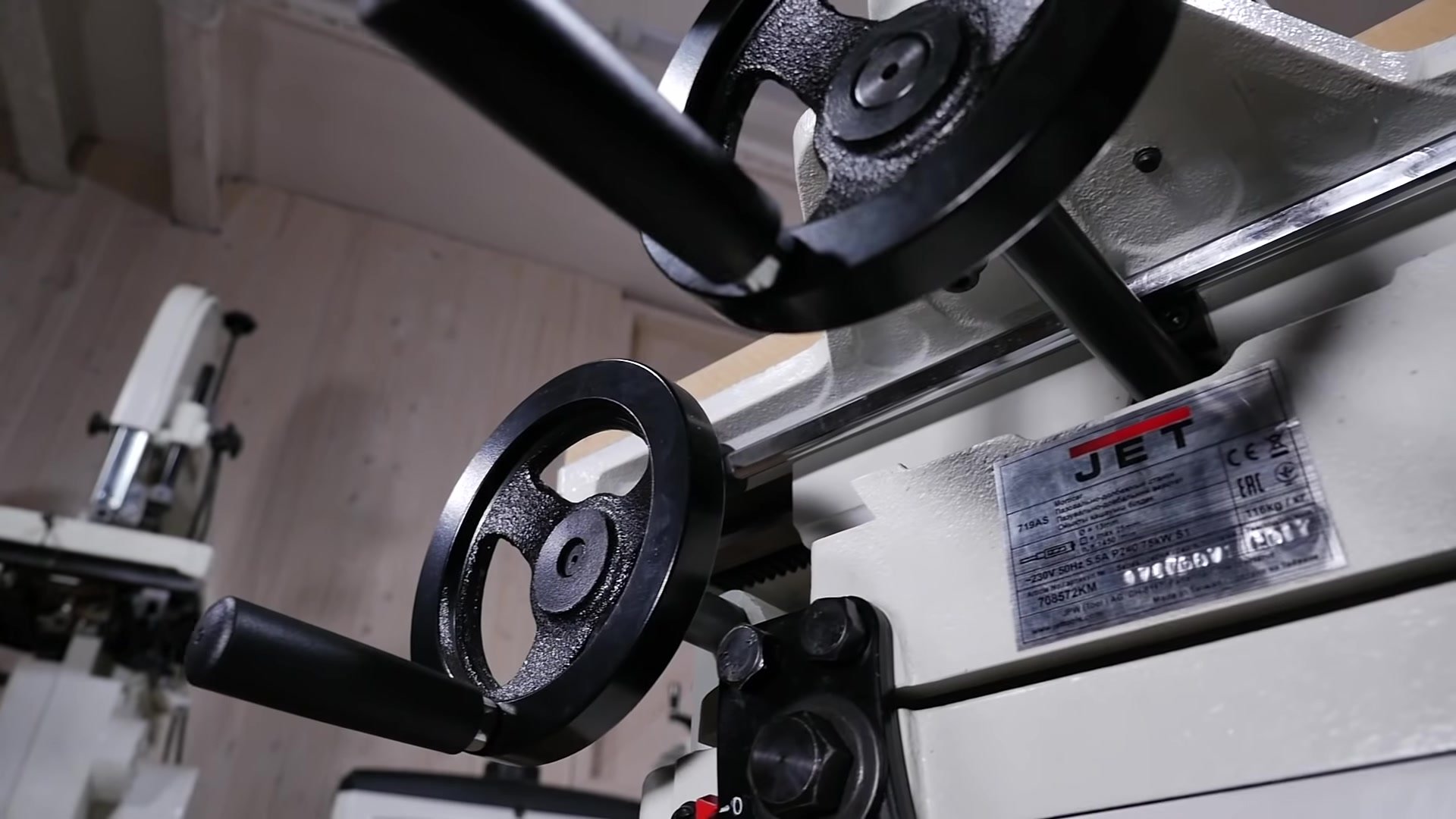

• Large handwheels for easy and precise adjustment of the coordinate table
• End stops for repeatable series production

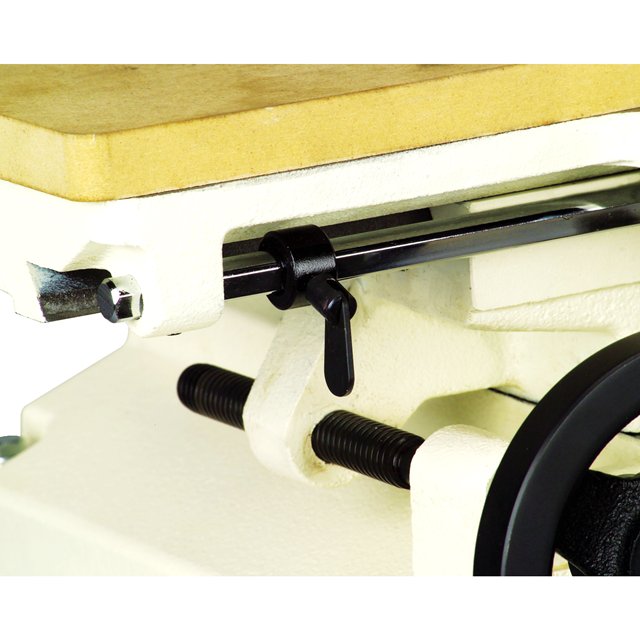

• Workpiece clamp with quick adjustment for fast and safe work
• Table tilt up to 35° (model 719AS-M) for maximum flexibility
• Stable base cabinet with storage compartment - order and safety in your workshop

Technical data

Electrical
Voltage	1~230 V, PE, 50 Hz
Phases	1
Motor output S1	0.75 kW (1 PS)
Operating current	5.5 A
Power cord	H07RN-F 3 × 1.5 mm²
Installation fuse	10 A
Protection class	I
Capacities
Motor speed	1450 rpm
Drill chuck capacity	13 mm
Max. chisel size	25 × 25 mm
Chisel bushings	5/8 / 3/4 / 13/16 / 1-3/16 inch
Head stroke	200 mm
Max. distance table to chisel bushing	295 mm
Max. chisel centre to fence	100 mm
Table
Fence size	90 × 520 mm
Table size	180 × 520 mm
Table travel long / cross	400 / 100 mm
Dimensions
Dimensions (L × W × H)	650 × 500 × 1760 mm
Weight
Net weight	105 kg
Shipping weight	130 kg
Further data
Sound pressure level	LpA 67.8 dB(A) idling / 77.5 dB(A) in operation

Target audience

Professional users, workshops and demanding trade businesses.

Application

For typical mortising machine applications in workshops and production.

Scope of delivery

• JET 719A-M mortiser
• Closed cabinet stand with storage shelf
• Drill chuck 13 mm
• Chuck key
• Spindle extension
• Chisel bushing 5/8 inch (15.87 mm)
• Chisel bushing 3/4 inch (19.05 mm)
• Chisel bushing 13/16 inch (20.64 mm)
• Chisel bushing 1-3/16 inch (30.16 mm)
• 2 × hand wheel handles
• MDF table
• Operating handle
• Work stop
• Depth stop and end stops
• Operating tools
• Assembly kit
• Operating manual
• Spare parts list
