JET JWBS-15-T wood bandsaw
Item numberJWBS-15-T
EAN / GTIN7612375527995
2.618,00 € gross2.200,00 € netincl. VAT · Shipping costs
The JET JWBS-15-T is a band saw for wood, wood-based materials and plastics. 400 V three-phase motor with 1.5 kW, cutting height 356 mm and cutting width 360 mm.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

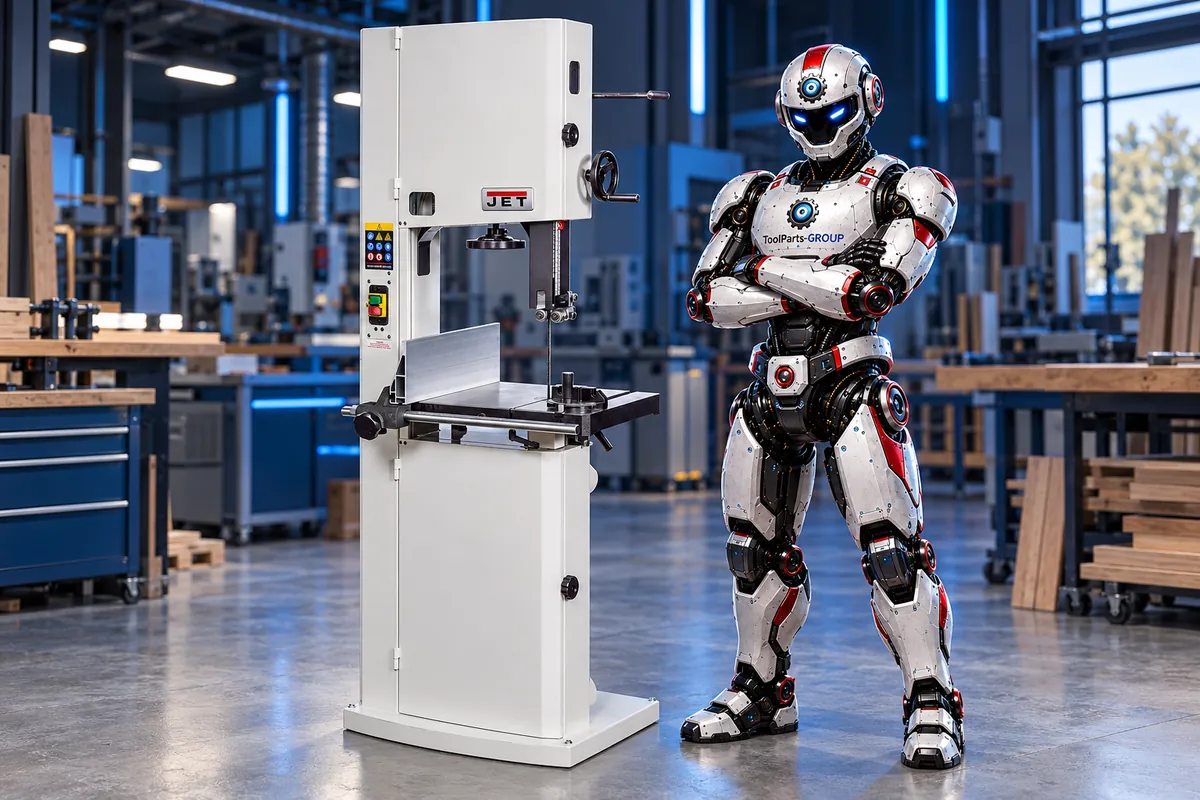

In use
Overview
The precision-ground cast-iron table, tool-free adjustable ball-bearing blade guides and electro-mechanical motor brake support controlled ripping, cross-cutting and curved cuts. Quick tensioning and a viewing window aid blade setup.
Benefits
- Quick tensioning
- motor brake
- tool-free ball-bearing guides
- fine-adjust rip fence
- rack-and-pinion guide height adjustment.
Technical data
| Electrical | |
|---|---|
| Voltage | 400 V, PE, 50 Hz |
| Phases | 3 |
| Output power S1 | 1.5 kW (2 HP) |
| Operating current | 3.8 A |
| Power cord | H07RN-F 5 × 1.5 mm² |
| Installation fuse | 16 A |
| Protection class | I |
| Capacities | |
| Wheel diameter | 375 mm |
| Max. cutting width | 360 mm |
| Max. cutting height | 356 mm |
| Saw blade length | 3380 mm (3350 – 3390 mm) |
| Blade width | 3 – 25 mm |
| Blade thickness | 0.5 – 0.7 mm |
| Cutting speed | 760 m/min |
| Table | |
| Table size (L × W) | 545 × 405 mm |
| Table tilt | -5° to 45° |
| Working height | 890 mm |
| Dust extraction | |
| Dust port | 2 × Ø 100 mm |
| Minimum air volume | 565 m³/h (at 20 m/s, 1250 Pa) |
| Dimensions | |
| Dimensions (W × D × H) | 750 × 810 × 1880 mm |
| Weight | |
| Net weight | 174 kg |
| Further data | |
| Sound pressure level | LpA 74 dB(A) idling / 87 dB(A) operating |
| Sound power level | LwA 82 dB(A) idling / 93 dB(A) operating |
Target audience
Professional and demanding woodworking users.
Application
Straight and curved cuts in wood, wood-derived materials and similarly machinable hard plastics; not for metal.
Scope of delivery
- JET JWBS-15-T band saw
- Rip fence (fence body and fence profile) with guide rail
- Table with table insert
- Mitre gauge ± 45°
- Lifting ring
- Hand wheel with handle
- Saw blade 13 mm
- Dust port Ø 100 mm
- Hardware package (screws, washers, table slot handle assembly)
- Operating manual
- Spare parts list
Not included
- Additional saw blades.
Product safety
- Manufacturer: JPW Industries, Inc.
- Website: https://www.jettools.com/
- Distributor / service contact: Christian Satter / ToolParts-Service
- Address: Kleinhaslach 35, 90599 Dietenhofen, Deutschland
- Website: https://toolparts-group.com/
Product identifiers
- Article number: JWBS-15-T
- MPN: JWBS-15-T
- EAN/GTIN: 7612375527995
Technical data
Additional data
- Marke
- JET
- Product type
- Machine
- Baureihe
- JWBS
- Modell/Typ
- Stationäre Holzbandsäge
- Original/Kompatibel
- Originalprodukt
Downloads
Operating manuals and spare-parts listsProduct safety
Manufacturer
JPW Industries, Inc.427 New Sanford Rd37086 La Vergne, TNUnited StatesEU importer
Tool France SAS9 rue des Pyrénées91090 LissesFranceService & spare parts
Technical documents, spare-parts identification and repair support remain permanently available through ToolParts-Service.
