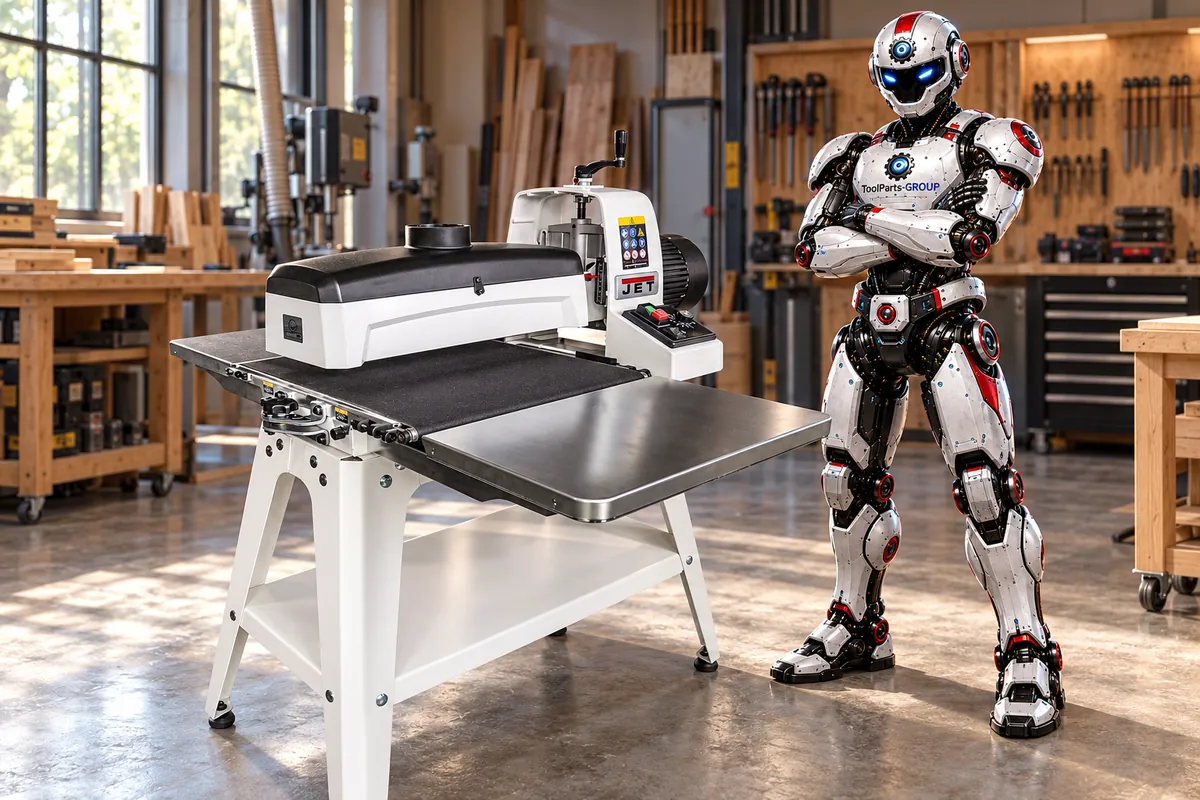

JET JWDS-1836-M Drum sander

The JET JWDS-1836-M is a drum sander for joinery shops, workshops and schools. It is intended for sanding wood and similar materials, for example levelling glued-up panels, sizing strips and panels or sanding thin parts from 0.8 mm. Wet sanding is not intended.

The 1.3 kW drum motor (230 V) drives the sanding drum at 1400 rpm. A separate feed motor moves the conveyor belt at a variable speed of 0 – 3 m/min. The SandSmart control monitors the drum motor load and adjusts the feed rate automatically to avoid overloading. The dynamically balanced aluminium drum dissipates heat and helps prevent burn marks.

The sanding width is 457 mm in one pass, and the open-end design allows widths up to 914 mm in two passes. The drum is raised and lowered by a crank at 1.6 mm per turn. The parallelism of the conveyor table is adjustable. Supplied with a mounted grit 80 abrasive, the height crank and an open stand with mounting hardware.

Features at a glance

• Drum motor 1.3 kW, feed motor 40 W
• Sanding width 457 mm / 914 mm in two passes
• Stock thickness 0.8 mm to 75 mm
• Variable feed 0 – 3 m/min with SandSmart control
• Dust port Ø 100 mm

Benefits

• Maximum sanding width up to 914 mm thanks to open-ended design - for extra-large workpieces in two passes.
• Sandsmart™ control - monitors the drum motor load and automatically adjusts the feed speed to ensure the highest possible
• High-quality aluminium drum - precision-machined, dynamically balanced and extruded for optimum heat dissipation and protection
• Durable drum components - dust-proof, permanently lubricated deep-groove ball bearings ensure smooth, low-maintenance operation.
• Precise workpiece adjustment - thanks to the adjustable feed table with memory function, perfect parallelism is achieved effortlessly.
• Robust construction - the feed bed made from precision-rolled, heavily ribbed sheet steel ensures stability and durability.
• Exact depth setting - thanks to the height scale and crank scale ring, fine adjustment is precise to the point.

Technical data

Target audience

Professional users, workshops and demanding trade businesses.

Application

For typical drum sander applications in workshops and production.

Scope of delivery

• JET JWDS-1836-M drum sander with conveyor table
• 80 grit abrasive pre-installed on drum
• Height adjustment handle
• Open stand assembly (shelf, 2 short rails, 2 long rails, 4 legs, 4 leveling feet)
• Stand hardware (24 carriage bolts M8 × 16 / 24 flanged lock nuts M8 / 8 flat washers / 4 hex nuts)
• Operating manual
• Spare parts list

Product safety

• Manufacturer: JPW Industries, Inc.
• Website: https://www.jettools.com/
• Distributor / service contact: Christian Satter / ToolParts-Service
• Address: Kleinhaslach 35, 90599 Dietenhofen, Deutschland
• Website: https://toolparts-group.com/

Product identifiers

• Article number: JWDS-1836-M
• MPN: JWDS-1836-M
• EAN/GTIN: 7612375520545
