JET JWS-34KX-M Spindle moulder
Item numberJWS-34KX-M
EAN / GTIN7612375526332
2.616,81 € gross2.199,00 € netincl. VAT · Shipping costs
The JET JWS-34KX-M is a spindle moulder for profiling, rebating and grooving wood. 230 V single-phase motor with 1.5 kW, four speeds 1700 / 3500 / 6000 / 8000 rpm, 30 mm spindle.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

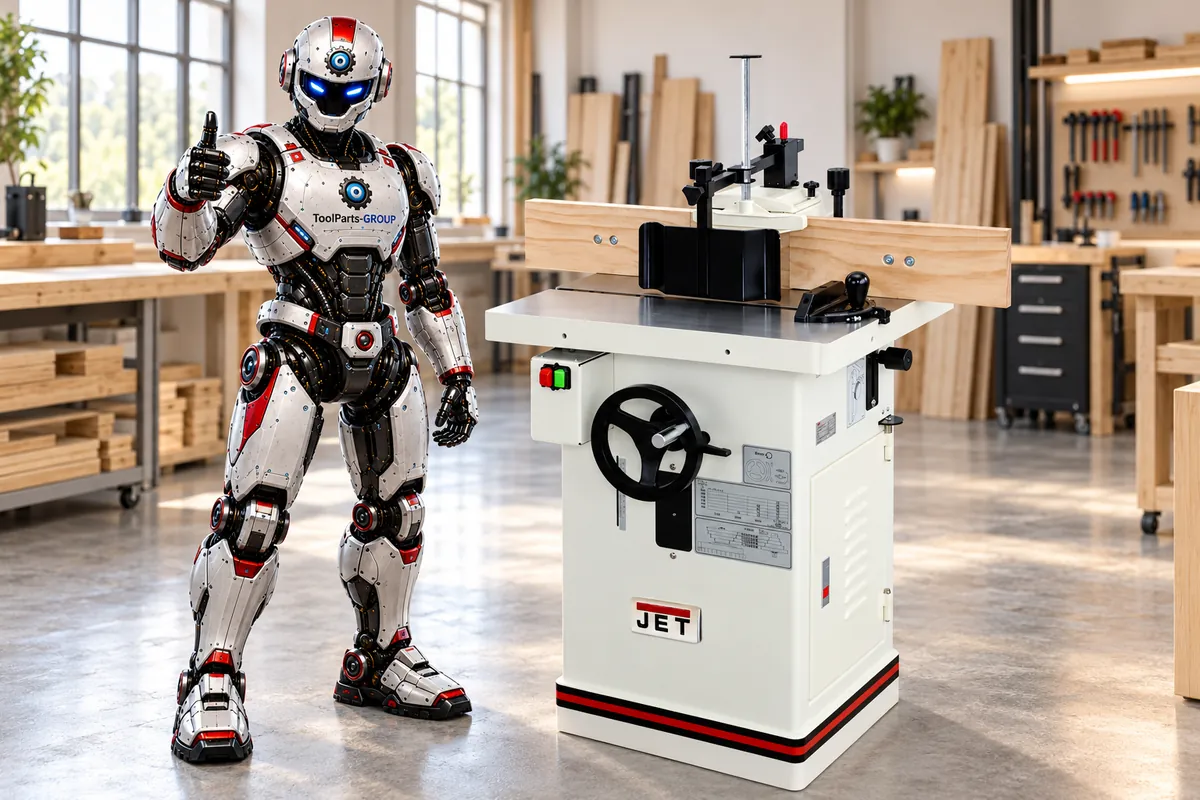

In use
Overview
The JET JWS-34KX-M is a spindle moulder for joinery shops, workshops and schools. It is intended for shaping wood and wood-based materials, with typical tasks such as profiling, rebating, grooving and curved work. Metallic materials must not be machined.
The 230 V single-phase motor with 1.5 kW drives the 30 mm spindle via poly-V belt. Four speeds of 1700 / 3500 / 6000 / 8000 rpm are selected by moving the belt. The spindle has a vertical travel of 80 mm, and tools up to 180 mm in diameter can be used. A spindle lock makes tool changes easier.
The precision-ground cast iron table measures 635 × 600 mm. With the 8 and 12 mm collets, router bits can also be used, and with JET JOSS-S sanding sleeves the machine can sand curved parts. Supplied with shaper fence, guard with side and top pressure shoes, curved work fence, mitre gauge and push stick.
Features at a glance
- 230 V single-phase motor, 1.5 kW
- Four speeds 1700 / 3500 / 6000 / 8000 rpm
- Spindle 30 mm, travel 80 mm
- 8 and 12 mm collets for router bits
- Cast iron table 635 × 600 mm
- Dust extraction Ø 100 mm
Benefits
- Stability and accuracy - the generous cast-iron spindle moulder table, precision ground, offers a stable
- Easy speed adjustment - four speeds (1,700/3,500/6,000/8,000 rpm) can be changed effortlessly
- Convenient tool change - spindle indexing makes tool changes quick and easy.
- Pure versatility - with 8 mm and 12 mm collet mounts, you can use router tools flexibly.
- Innovative additional function - use JET JVOS-10 sanding sleeves to sand curved workpieces perfectly!
Technical data
| Electrical | |
|---|---|
| Voltage | 230 V ~1/N/PE, 50 Hz |
| Phases | 1 |
| Motor output S1 | 1.5 kW (2 PS) |
| Operating current | 10 A |
| Power cord | H07RN-F 3 × 1.5 mm² |
| Installation fuse | 16 A |
| Capacities | |
| Spindle speeds | 1700 / 3500 / 6000 / 8000 rpm |
| Spindle diameter | 30 mm |
| Clamped height | 70 mm |
| Spindle travel | 80 mm |
| Router bit collets | 8 / 12 mm |
| Max. tool diameter | 180 mm |
| Max. tool height above table | 120 mm |
| Table | |
| Table size | 635 × 600 mm |
| Table height | 830 mm |
| Table opening | Ø 160 mm |
| Dust extraction | |
| Dust port | Ø 100 mm |
| Minimum air volume | 565 m³/h (at 20 m/s, 800 Pa) |
| Dimensions | |
| Dimensions (L × W × H) | 920 × 680 × 1090 mm |
| Weight | |
| Net weight | 156 kg |
| Shipping weight | 181 kg |
| Further data | |
| Sound pressure level | LpA 74 dB(A) idling / 83 dB(A) operating |
| Sound power level | LwA 83 dB(A) idling / 90 dB(A) operating |
Target audience
Professional users, workshops and demanding trade businesses.
Application
For typical spindle moulder applications in workshops and production.
Scope of delivery
- JET JWS-34KX-M wood shaper
- 30 mm spindle arbour assembly with spindle rings
- Collets 8 and 12 mm
- Fence assembly
- Spacer board for fence
- Workpiece hold-downs (lateral and vertical)
- Push stick
- Curved guard assembly
- Mitre gauge
- Operating tools
- Assembly kit
- Operating manual
- Spare parts list
Product safety
- Manufacturer: JPW Industries, Inc.
- Website: https://www.jettools.com/
- Distributor / service contact: Christian Satter / ToolParts-Service
- Address: Kleinhaslach 35, 90599 Dietenhofen, Deutschland
- Website: https://toolparts-group.com/
Product identifiers
- Article number: JWS-34KX-M
- MPN: JWS-34KX-M
- EAN/GTIN: 7612375526332
Technical data
Additional data
- Marke
- JET
- Product type
- Machine
- Baureihe
- JWS-34KX
- Modell/Typ
- Tischfräsmaschine
- Original/Kompatibel
- Originalprodukt
