PROMAC BX-825VT Variable-speed drilling machine
Item numberBX-825VT
3.866,31 € gross3.249,00 € netincl. VAT · Shipping costs
The PROMAC BX-825VT is a 400 V bench drill press with variable speed of 270 – 2700 rpm, digital speed display and tapping function. Drilling capacity 25 mm.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

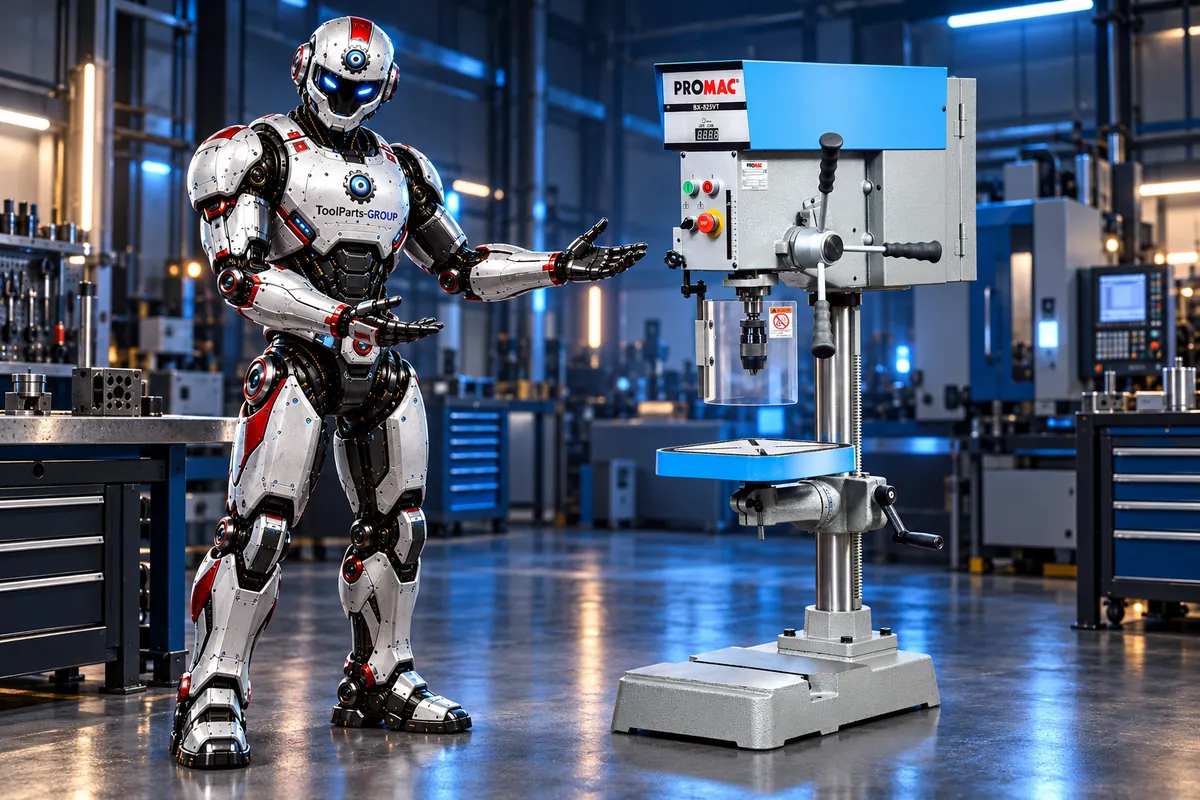

In use
Overview
The PROMAC BX-825VT Variable-speed drilling machine is designed for variable drilling operations in machinable metals and suitable plastics. Variable or continuously variable speed adjustment. Safety and emergency-stop equipment in accordance with the original documentation. Quick-clamping equipment for efficient workpiece handling. Digital display for controlled settings. The assigned original documentation governs setup, performance limits and safe use.
Product safety
- Use only as intended, within the stated limits and in accordance with the complete operating instructions.
- Operation is restricted to trained adults; keep guards and emergency-stop devices fully functional.
- Before adjustment, cleaning, fault clearing or maintenance, switch off, isolate the power supply and prevent restart.
- Wear the prescribed personal protective equipment and clamp or guide the workpiece in accordance with the instructions.
Technical data
| Electrical | |
|---|---|
| Voltage | 400 V ~ 3L/PE, 50 Hz |
| Phases | 3 |
| Output power S1 | 0.55 kW (0.75 HP) |
| Operating current | 1.5 A |
| Power cord | H07RN-F 4 × 1.5 mm² |
| Installation fuse | 10 A |
| Capacities | |
| Drilling capacity in steel S235 (St37) | 25 mm |
| Tapping capacity | M12 |
| Throat | 180 mm |
| Spindle travel | 100 mm |
| Spindle taper | MT3 |
| Column diameter | 80 mm |
| Spindle nose to table | 430 mm |
| Spindle nose to base | 670 mm |
| Speed range (variable) | 270 – 2700 rpm |
| Tapping function | Yes |
| Table | |
| Table size | 285 × 285 mm |
| T-slot size | 12 mm |
| Dimensions | |
| Dimensions (L × W × H) | 850 × 350 × 1190 mm |
| Weight | |
| Net weight | 125 kg |
| Further data | |
| Speed display | Digital |
| Sound pressure level idle | LpA 69.6 dB(A) |
| Sound pressure level in operation | LpA 79.0 dB(A) |
Scope of delivery
- PROMAC BX-825VT bench drill press
- Machine base
- Column and table bracket
- Head assembly
- Table
- Table bracket lock handle
- Table bracket crank
- 3 × downfeed handle
- Keyless chuck 16 mm, B18
- Arbor MT3/B18
- Chuck guard
- Drift key
- Operating tools
- Assembly kit
- Operating manual
- Spare parts list
Benefits
- Schnellspanneinrichtung für effiziente Werkstückhandhabung
Technical data
Additional data
- Intended use
- variable drilling operations in machinable metals and suitable plastics
- Product type
- Machine
Downloads
Operating manuals and spare-parts listsProduct safety
WARNING: Entanglement, cutting and crushing hazards at the rotating spindle and tool. Clamp the workpiece firmly, remove the chuck key and fully disconnect from the mains before any intervention.
Product safety – PROMAC BX-825VT variable-speed drill. • Use only as intended, within the documented performance limits and in accordance with the complete original documentation; operation is restricted to instructed adults. • Before each use, check the machine, mounting, guards, switching devices and power cable; do not operate damaged or incomplete products. • Ensure stable positioning, a clear work area, adequate lighting and the power supply specified on the rating plate; electrical work must be carried out only by qualified specialists. • Before setting up, changing tools, clearing faults, cleaning or maintenance, switch off, disconnect from the mains, wait for a complete stop and secure against restarting. • Wear close-fitting clothing, eye protection and suitable hearing protection; remove jewellery and secure long hair. Never remove or bypass guards. • Clamp the workpiece securely; remove the chuck key before starting, keep hands away from the spindle and tool, and remove chips only at standstill using a suitable aid.
Manufacturer
JPW Industries, Inc.427 New Sanford Rd37086 La Vergne, TNUnited StatesEU economic operator
Christian Satter, ToolParts-Group / ToolParts-ServiceKleinhaslach 3590599 DietenhofenGermanyService & spare parts
Technical documents, spare-parts identification and repair support remain permanently available through ToolParts-Service.
