PROMAC BD-8-M Metal lathe
Item numberBD-8-M
2.378,81 € gross1.999,00 € netincl. VAT · Shipping costs
The PROMAC BD-8-M is a 230 V bench lathe with variable speed of 100 – 2000 rpm and digital readouts on cross and top slide. Distance between centres 450 mm, swing over bed 210 mm.
AvailableAvailable ex works
Delivery / availability: Delivery time 5–7 working days. The period starts after conclusion of the contract or, for agreed prepayment, after your payment instruction. Delivery by freight carrier to the kerbside, without installation or carrying the goods into the building or to their intended location. A telephone number is required to arrange delivery. Please refuse delivery if there is obvious transport damage and contact us. Have visible damage recorded on the consignment note. CMR is the convention governing international carriage of goods by road; for these shipments, the CMR consignment note serves as evidence of transport. Refusing delivery is not a general CMR requirement. Statutory consumer rights remain unaffected even if the goods are accepted.
Stock sourceAvailable ex works
Customer groupPurchase: businesses and private customers

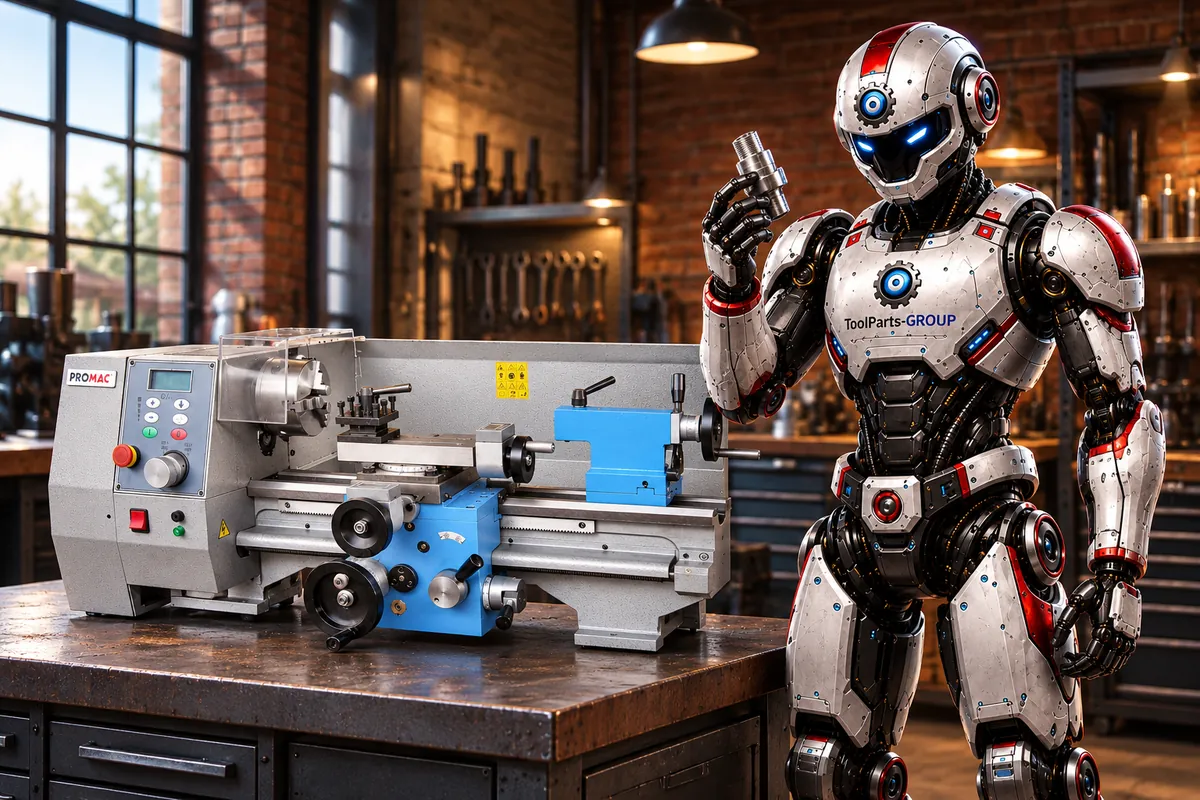

In use
Overview
The PROMAC BD-8-M Metal lathe is designed for turning and drilling operations on securely clamped machinable metals and suitable plastics. Variable or continuously variable speed adjustment. Safety and emergency-stop equipment in accordance with the original documentation. Digital display for controlled settings. The assigned original documentation governs setup, performance limits and safe use.
Product safety
- Use only as intended, within the stated limits and in accordance with the complete operating instructions.
- Operation is restricted to trained adults; keep guards and emergency-stop devices fully functional.
- Before adjustment, cleaning, fault clearing or maintenance, switch off, isolate the power supply and prevent restart.
- Wear the prescribed personal protective equipment and clamp or guide the workpiece in accordance with the instructions.
Technical data
| Electrical | |
|---|---|
| Voltage | 230 V ~ 1/N/PE, 50 Hz |
| Phases | 1 |
| Output power S1 | 1 kW (1.35 HP) |
| Operating current | 6 A |
| Power cord | H07RN-F 3 × 1.5 mm² |
| Installation fuse | 10 A |
| Capacities | |
| Swing over bed | 210 mm |
| Swing over cross slide | 135 mm |
| Distance between centres | 450 mm |
| Spindle taper | MT3 |
| Spindle bore | 20 mm |
| Spindle speed range (variable) | 100 – 2000 rpm |
| Forward/reverse | Yes (reverse at half max. speed) |
| Tailstock ram travel | 40 mm |
| Tailstock taper | MT2 |
| Cross slide travel | 100 mm |
| Top slide travel | 70 mm |
| Max. tool size | 10 × 10 mm |
| Lead screw pitch | 2 mm |
| Longitudinal feeds | 0.045 / 0.125 mm/rev |
| Metric threads (17) | 0.25 – 3 mm |
| Inch threads (10) | 8 – 24 TPI |
| Dimensions | |
| Dimensions (L × W × H) | 1000 × 550 × 400 mm |
| Weight | |
| Net weight | 94 kg |
| Further data | |
| Digital displays | Cross slide and top slide |
| Sound pressure level (idle at max. speed) | 73.4 dB(A) |
Scope of delivery
- PROMAC BD-8-M bench lathe
- Four-way tool post
- Set of change gears
- MT2 fixed centre
- MT3 fixed centre
- 3-jaw universal chuck 100 mm
- Chuck guard
- Splash guard
- Digital display for cross slide
- Digital display for top slide
- Assembly kit
- Operating manual
- Spare parts list
Technical data
Additional data
- Intended use
- Dreh- und Bohrarbeiten an sicher gespannten, zerspanbaren Metallen und geeigneten Kunststoffen
- Product type
- Machine
Downloads
Operating manuals and spare-parts listsProduct safety
WARNING: Entanglement, crushing and impact hazards at the chuck, workpiece and spindle. Remove the chuck key, avoid loose clothing and wait for a complete stop before measuring or setting up.
Product safety – PROMAC BD-8-M metal lathe. • Use only as intended, within the documented performance limits and in accordance with the complete original documentation; operation is restricted to instructed adults. • Before each use, check the machine, mounting, guards, switching devices and power cable; do not operate damaged or incomplete products. • Ensure stable positioning, a clear work area, adequate lighting and the power supply specified on the rating plate; electrical work must be carried out only by qualified specialists. • Before setting up, changing tools, clearing faults, cleaning or maintenance, switch off, disconnect from the mains, wait for a complete stop and secure against restarting. • Wear close-fitting clothing, eye protection and suitable hearing protection; remove jewellery and secure long hair. Never remove or bypass guards. • Securely fasten the workpiece and workholding devices, remove the chuck key, close guards and never wear gloves near rotating parts; secure long bars against whipping.
